To correctly wire a three-phase motor control system, begin by ensuring you have the right components in place: a contactor, overload relay, and control buttons. These components play a critical role in ensuring the system operates reliably. The contactor serves to control the power to the motor, while the overload relay provides protection against potential damage caused by excessive current.
Next, focus on the correct arrangement of the wiring for each part of the system. The control circuit should be properly connected to initiate the motor’s operation. The most common setup includes a start button to energize the motor and a stop button for cutting off power in case of an emergency. The correct placement of the overload relay is crucial to ensure that the motor is protected from overheating, and this relay should always be connected in series with the motor.
When performing the installation, be sure to follow the manufacturer’s recommendations for wire sizes and connections. Proper insulation and secure connections are vital for safe operation, preventing short circuits and ensuring the system’s longevity. Additionally, verify the voltage and current ratings of all components to match the specifications of the motor to avoid system failure.

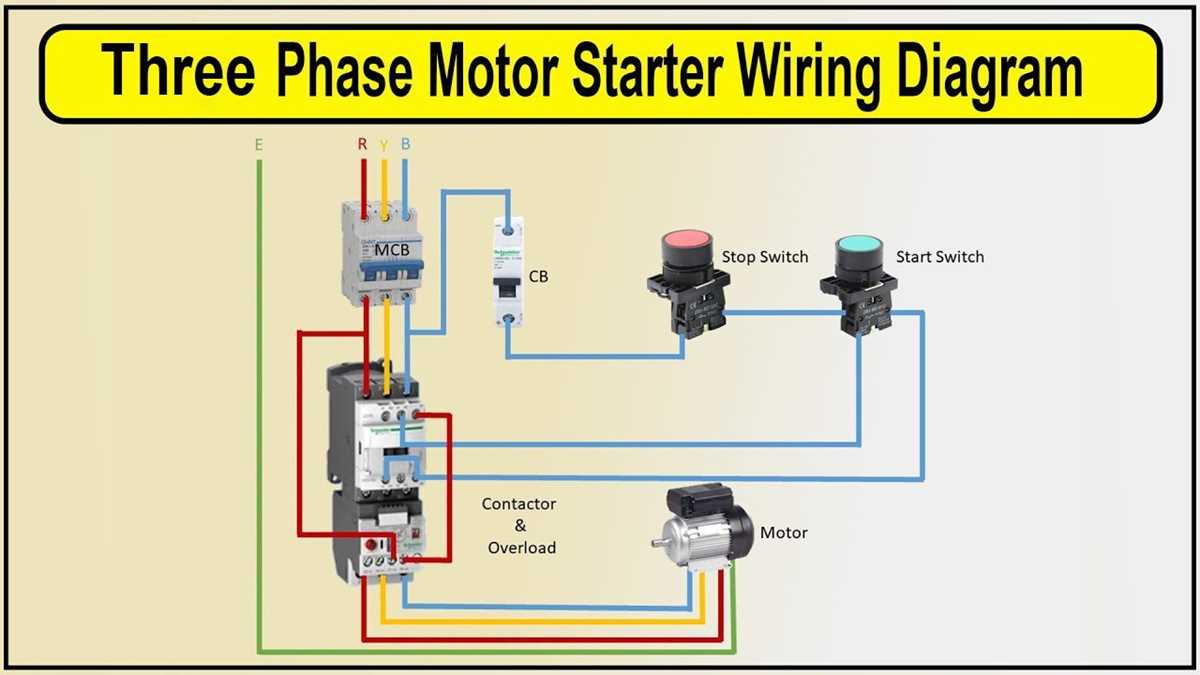

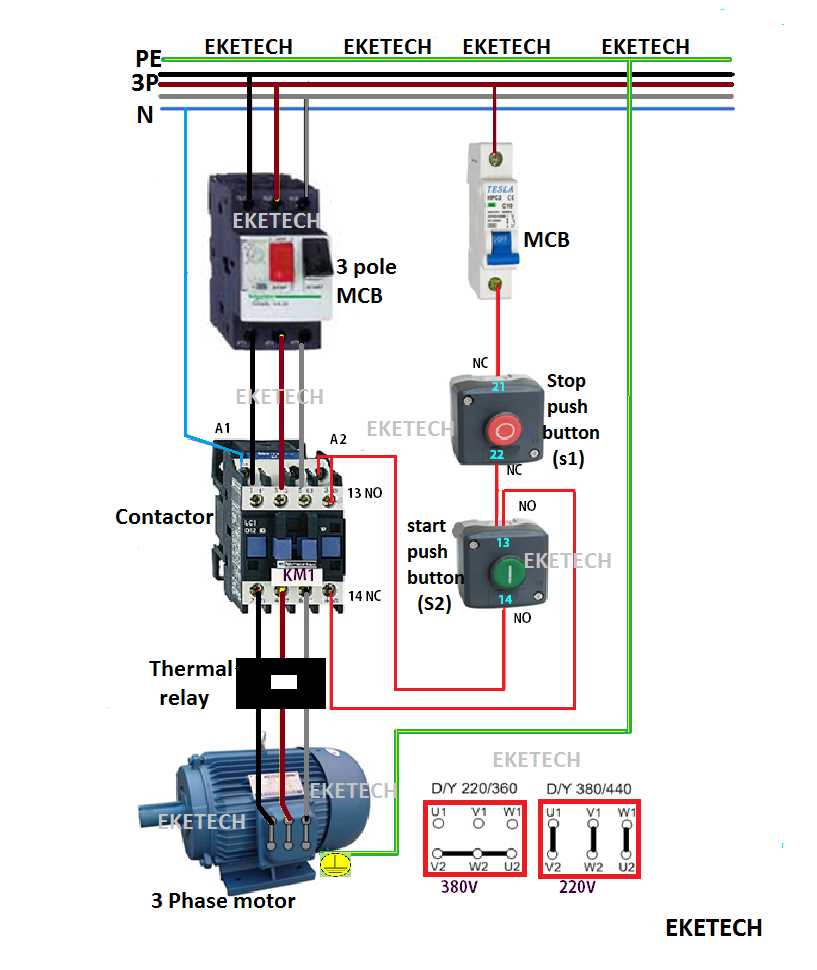

3 Phase Motor Control System Wiring Guide
Begin by selecting the right contactor for your motor. This component acts as a switch that controls power to the motor, enabling or disabling operation. Ensure the contactor’s voltage and current rating match the motor’s specifications for safe and efficient performance.
The next crucial component is the overload protection relay. This device prevents the motor from burning out by cutting the power when it detects excessive current. It should always be installed in series with the motor’s power supply and must be appropriately rated for the motor’s full load current.
For control, install a push button switch that will be used to start and stop the motor. The start button should be wired to the coil of the contactor, while the stop button interrupts the current flow to the contactor coil to disengage the system when needed.
Securely connect the power supply to the contactor, ensuring the correct terminals are used for line and load sides. Double-check that the line terminals are connected to the incoming power supply and the load terminals to the motor.
It’s important to use appropriate gauge wire for all connections. Choose wiring based on the current ratings for both the contactor and the motor, ensuring the wire can handle the required amperage without overheating.
Once all components are connected, test the system by engaging the start button. Ensure that the motor runs when the start button is pressed and stops when the stop button is pressed. If any issues arise, check for loose connections or faulty components.
Make sure to ground the motor control system to avoid potential electric shocks. Grounding provides an additional layer of safety by directing any stray electrical current safely to the earth.
Lastly, maintain proper labeling and documentation for the motor control system. This ensures future troubleshooting and upgrades can be done efficiently, and anyone working on the system understands its configuration.
Understanding the Components of a 3 Phase Motor Control System
The first component in any motor control setup is the contactor, which acts as the main switching device. It enables or disables the power supply to the motor based on signals received from the control circuit. When the control circuit energizes the coil of the contactor, it closes the contacts, allowing the current to flow to the motor. Make sure to select a contactor rated for the motor’s operating voltage and current.
The overload relay is a protective device designed to prevent motor damage due to excessive current. It is typically wired in series with the motor’s power supply. This relay will detect when the motor draws too much current, which can happen during mechanical jams or other faults, and will cut off power to the motor to prevent damage.
Push Button Switches for Control
Next, consider the push button switches for controlling the motor’s start and stop functions. A start button is used to energize the contactor’s coil, allowing the motor to run, while a stop button will de-energize the coil, cutting off the motor’s power. These buttons are critical for ensuring safe and simple operation of the motor control system.
Connection to the Motor and Power Source
The power supply should be connected to the contactor’s line side, while the load side connects to the motor. Properly label each terminal and use the correct wiring sizes to ensure the system operates safely and efficiently. For optimal performance, choose cables that are rated for the motor’s power draw and match the contactor’s specifications.
The electrical protection fuses serve as additional safeguards to prevent catastrophic failures. If the current exceeds a safe limit, the fuse will blow, disconnecting power to the motor circuit. Fuses protect both the motor and wiring from short circuits or overloads, ensuring the entire system remains safe under various operating conditions.
A control transformer is sometimes used to step down high-voltage input to a more manageable level, particularly in larger systems. This transformer makes it easier to control high-power motors with low-voltage control circuits, ensuring that control devices such as push buttons and relays work within their voltage ratings.
In addition to the key components, grounding is a must. Always connect the motor and control panel to a proper ground. Grounding provides an important safety feature, ensuring that any stray currents or faults in the system will be safely redirected, reducing the risk of electric shock or fire.
Finally, ensure that your motor control system is properly maintained and that all components are functioning as expected. Regularly inspect the contactor, relay, and switches for signs of wear or damage, and replace any faulty components immediately to avoid potential failures and ensure the long-term safety of your equipment.
