Verify all line voltages before connecting the device to prevent shorts or overloads. Use a multimeter to confirm each input and output terminal carries the correct voltage and sequence.
Follow proper sequence for starter and control relays to ensure smooth operation. Label each connection and confirm tight fastening to avoid sparks or intermittent faults during operation.
Install overload and short-circuit protection before energizing the system. Check fuses, breakers, and thermal relays for correct ratings to match the device load and operating voltage.
3 Wire Industrial Connection Guide

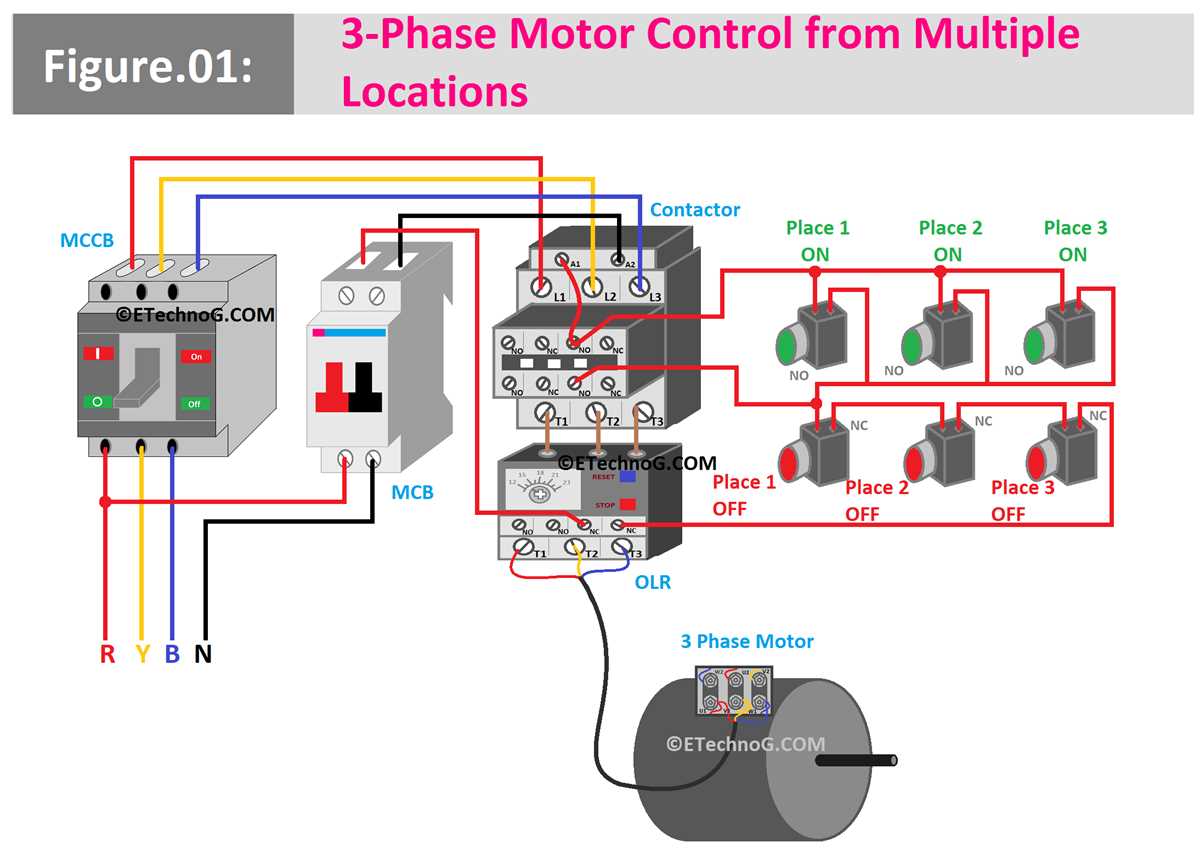

Connect incoming lines to the starter terminals following the correct order to ensure rotation direction and load balance. Verify each connection for tightness and absence of corrosion to prevent voltage drop and overheating during operation.
Install protective devices including overload relays, fuses, and breakers rated for the device load. Test each control relay and contactor before powering up to confirm smooth engagement and disengagement of the system under simulated load conditions.
Understanding Line Connections and Sequence
Identify incoming supply lines clearly using color codes or labeling to prevent connection errors. Red, yellow, and blue are commonly used for the three inputs, and each must be matched to the corresponding starter terminal.
Verify sequence with a rotation tester before energizing the device. Incorrect order can cause the load to rotate backward, leading to mechanical stress or damage to connected equipment.
Use insulated tools to tighten all terminals and check for loose contacts. Ensure the neutral or ground line is correctly secured to reduce the risk of electric shocks and maintain system stability under load.
Document the connection pattern with a simple sketch or photo for future maintenance. Maintaining accurate records allows technicians to troubleshoot faster and avoid sequence errors when replacing components.
Test the system under low load first, monitoring line voltage and current draw. Adjust any imbalances and confirm that overload protection devices are functioning correctly before full operation to ensure safe and reliable performance.
