For controlling a light from multiple locations, begin by understanding the basic setup. To control a light from two separate points, use the right components to complete the circuit. The key elements include two controlling units and the necessary connections between them to enable control from either location.
When extending the setup to three control points, a third component is added, which allows the light to be controlled from three distinct locations. Each component must be wired correctly to ensure proper operation and avoid short circuits or malfunctions.
It is also important to verify the correct polarity and ensure all connections are secure. Misconnections can cause electrical failure or safety hazards. Use a multimeter to check continuity and verify voltage levels before finalizing the setup.
3 and 4 Way Switch Wiring Guide
To create a setup where a light is controlled from two points, begin by connecting a two-way controlling device at both ends. Ensure the traveler wires are connected between the two devices, and the common terminal of the first one is linked to the power supply. The second device should connect to the light fixture through its common terminal.

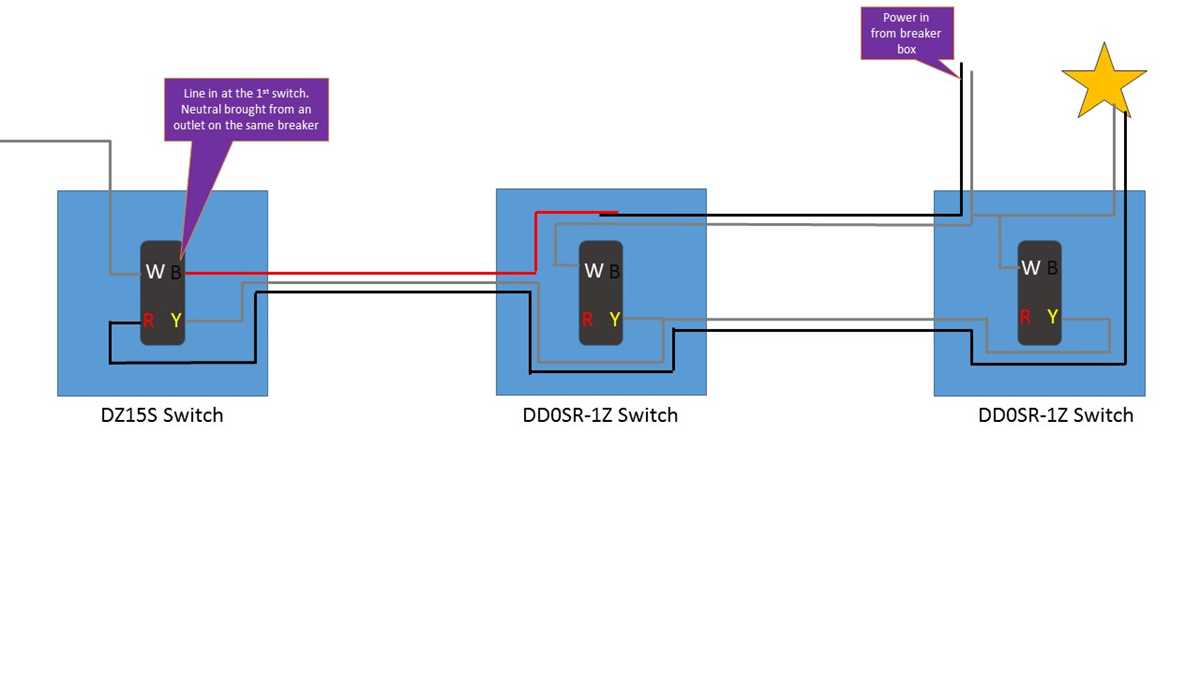

When extending this to three control points, introduce an additional device to handle the connections between the first two and the third. The third component allows you to control the same light from three different places. Ensure proper connectivity between each device, linking the traveler wires and maintaining correct polarity throughout the setup.
Once all components are installed, test the system to verify functionality. Use a tester to ensure that all connections are secure, and the light responds as expected from each control point. If any issues arise, double-check the wiring for mistakes like incorrect traveler connections or reversed terminals.
How to Wire a 3-Way Switch for Controlling a Light from Two Locations
Start by connecting the power supply to the common terminal of the first control device. Use a two-wire cable to connect the first device to the light fixture. The two traveler wires should be run from the first device to the second device, allowing both points to control the light.
At the second device, connect the traveler wires to the corresponding traveler terminals. The common terminal on this device will connect to the light fixture. Ensure that the traveler wires are properly routed between both devices to allow full functionality from either location.
After installation, check the setup using a multimeter to confirm that the connections are secure. The light should be operable from both locations without any faults. If the light doesn’t respond, verify that the traveler wires are properly connected and that no wires are loose or disconnected.
