Use a dedicated double-pole safety device for circuits that supply high-current appliances to prevent shock hazards. Ensure each conductor is properly identified with color codes and labels before making any connections.
Check the panel rating to confirm it can handle the load of the appliance. Match the amperage of the protective switch with the cable capacity to avoid overheating or tripping issues during operation.
Secure neutral and ground connections separately from the hot lines. This reduces the risk of false trips and ensures the protective mechanism responds only to actual leakage currents.
Follow torque specifications for all terminal screws. Loose connections can create sparks or heat buildup, while overtightening may damage the components and compromise safety.
Test the setup using a dedicated circuit tester before powering up. Simulate leakage conditions to verify the device trips correctly and confirms that all paths are properly secured.

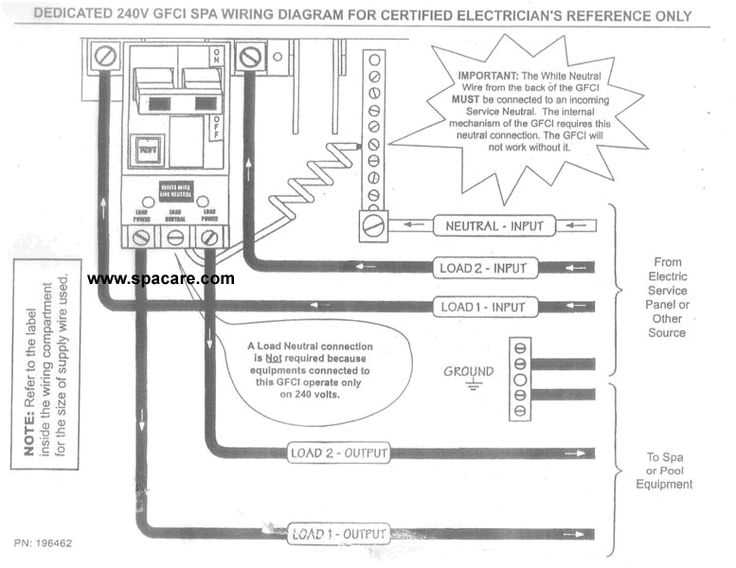

Connecting a Dual-Phase Protective Device
Use separate conductors for each leg of the high-current circuit to prevent overload and ensure the protective device functions correctly. Label the lines clearly for identification.
Verify panel compatibility by checking that the main distribution unit can handle the amperage rating of the safety switch. Exceeding the rating can cause nuisance tripping or overheating.
- Connect the two hot lines to opposite terminals.
- Attach the neutral wire to the designated neutral bar.
- Ensure the ground conductor is connected to the grounding bus.
Double-check the torque on all terminals. A loose connection may generate heat, while over-tightening can strip threads or crack the casing, reducing operational reliability.
Test each leg individually with a circuit analyzer to ensure the device detects current imbalances and trips within milliseconds under leakage conditions.
- Turn off the main supply.
- Connect the protective device to the panel terminals as specified.
- Secure all line and load connections with proper torque.
- Restore power and perform a trip test using a simulator.
Observe response times during testing to confirm the device reacts to minor faults without affecting normal load operation. Adjust connections if delays are detected.
Document all connections and test results for future reference, which aids troubleshooting and confirms compliance with safety standards for high-current circuits.
Identifying Conductors and Terminals for a Dual-Phase Safety Device
Mark each live line distinctly using colored tape or permanent markers to avoid confusion when connecting to the panel. Standard practice assigns black and red for the two active conductors.
Locate the neutral terminal separately from the hot lines. This terminal typically has a silver-colored screw and is critical for proper operation of the protective mechanism.
The grounding point should be attached to the chassis or grounding bar. Use a green or bare conductor and ensure it is secured under the correct screw to maintain safety compliance.
Inspect terminal ratings printed on the device. Match the conductor gauge with the terminal capacity to prevent overheating or loose contacts during operation.
Use a multimeter to verify that no line is live before making connections. Confirm continuity between neutral and ground paths to detect any potential shorts or miswiring.
Label the load-side terminals clearly for appliances or circuits that will draw power. Keeping load and line sides distinct prevents accidental reverse connections that can cause false trips.
Check for corrosion or oxidation on all screws and metal contact points. Clean surfaces improve conductivity and reduce the likelihood of malfunction under current load.
Document all conductor colors, terminal assignments, and connection points. This record helps during future maintenance and ensures consistency with local electrical codes.
