Complete Guide to Wiring a 240V Breaker for Your Electrical System

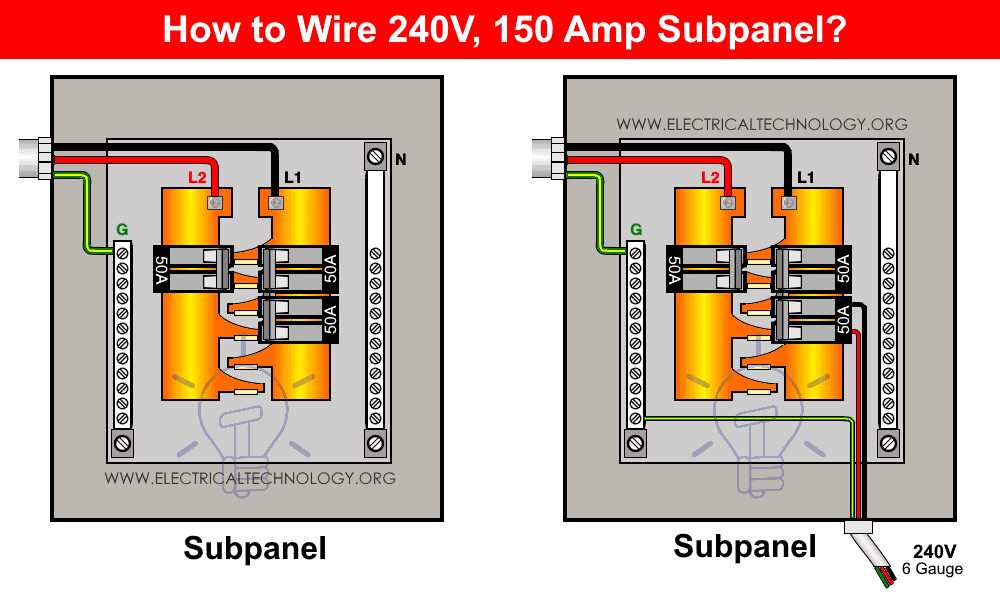

240v breaker wiring diagram

Before beginning any electrical installation, ensure you understand the basic components that will be used to connect your high-voltage circuits safely. The power distribution board requires certain types of switches, connectors, and conductors to ensure proper function. Identifying these components correctly will help you avoid common installation errors and increase the reliability of your electrical system.

The connection process typically involves ensuring that the live and neutral wires are properly arranged in relation to the panel’s switches. Make sure that each wire is stripped and inserted into the correct terminal for secure contact. Using the proper tools, such as insulated screwdrivers, will protect you from accidental contact with live wires and prevent the risk of shorts.

Another critical aspect is verifying the amperage ratings of your components, which need to match the demands of your appliances or circuits. Always use components that meet local safety standards, and don’t hesitate to consult with an experienced electrician if you’re unsure about any part of the setup process.

By following these steps, you will ensure a safe and reliable electrical installation, which will not only protect your appliances but also prevent hazardous situations. Proper installation is not just about connecting wires; it’s about understanding how each component works together to deliver power efficiently and safely.

240V Breaker Wiring Guide

Ensure you always use the right-rated components for a high-voltage electrical setup. This includes a properly rated switch, cables, and other connectors. Selecting the correct amperage for your setup is critical to avoid overheating or electrical failure.

Start by determining the appropriate wire gauge based on the current load. Use a wire gauge chart to match the amperage requirements of the appliances to the wire size. For 240V circuits, most commonly used wire sizes are 10 AWG or 12 AWG, depending on the load demand.

Before making any connections, verify that the power supply is turned off. This ensures safety while working on live wires. Use an insulated screwdriver to connect the cables to the switch terminals. Tighten each terminal carefully to secure the wire, making sure that there are no exposed conductors that could cause short circuits.

Next, it’s important to properly connect the neutral and ground wires. The neutral wire should be connected to the neutral bar, and the ground wire should be securely attached to the grounding bar. These connections help ensure safe operation by directing any stray electricity away from sensitive components.

Once all connections are made, perform a continuity test to check that the wiring is correct. Use a multimeter to ensure there is continuity between the terminals, making sure there are no loose connections that could lead to faults.

After confirming the wiring is set up correctly, install the switch into the electrical panel. Ensure that all screws are tightened securely and that the panel cover is properly closed to prevent dust or moisture from entering the system.

Before powering the system back on, double-check all connections, and then switch on the power. Monitor the system for any unusual behavior, such as tripping of the circuit or overheating of the components. This will confirm that everything is set up correctly and safely.

Understanding the Components of a 240V Breaker System

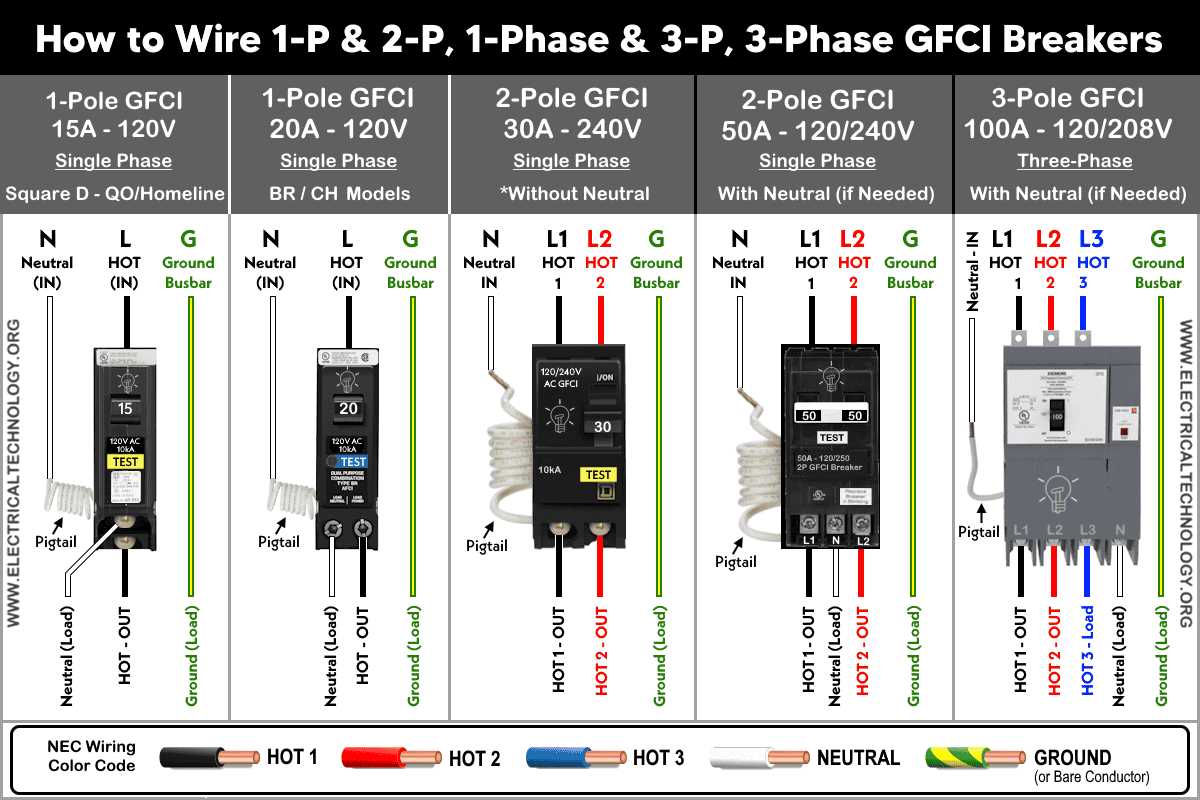

240v breaker wiring diagram

The central component of any high-voltage electrical installation is the main disconnect switch, which controls the power flow. This switch is critical for isolating the circuit during maintenance, ensuring that no power is delivered to the connected appliances or equipment.

Another key part is the bus bar, which acts as a conductive bridge that connects the incoming power supply to the individual circuits. The bus bar distributes electrical current to different sections of the system, and it’s essential that it is properly rated to handle the expected load.

Each circuit is connected to a dedicated switch, which automatically disconnects the circuit in case of an overload or fault. These switches, typically installed in the electrical panel, serve as safety features that prevent damage to appliances and wiring by cutting off the power when necessary.

Additionally, the grounding system plays a vital role in protecting the system and its users from electrical hazards. The ground wire provides a path for any stray electrical current to flow safely into the earth, reducing the risk of electrocution or equipment damage.

Finally, conductors such as the live and neutral wires are responsible for carrying the current to and from the appliances. Correctly sizing and connecting these wires to their respective terminals ensures the proper operation of the system and prevents overheating or short circuits.
