Ensure each hot conductor is correctly identified before attaching to breakers or distribution bars. Use color-coded insulation: typically black and red for phases and white for neutral.
Maintain tight, corrosion-free connections by stripping insulation precisely 12–14 mm and securing with torque-controlled screw terminals. Loose contact can cause voltage drops or overheating.
Balance loads across phases by distributing branch circuits evenly. For a three-phase setup, verify that current draw does not exceed 80% of breaker ratings to prevent nuisance trips.
Use insulated tools and verify voltage presence with a multimeter before making or adjusting connections. Double-check phase rotation when connecting motors to avoid reverse operation.
Label all connections clearly, including neutral and ground points, to simplify future maintenance. Employ heat-shrink tubing or identification tags on each conductor to prevent miswiring during modifications.
208 Volt Electrical System Connections and Layout Guide
Distribute phase conductors evenly across breakers to maintain balanced load. Use red and black for the hot lines and white for neutral to avoid confusion during future adjustments. Ensure ground connections are secured to a common busbar with green or bare copper conductors.
Strip insulation precisely 12–14 mm and insert conductors fully into terminals. Tighten screws to the manufacturer’s torque rating to prevent overheating or arcing. Check for correct phase orientation before energizing any branch circuits.
Plan the layout with clear separation between high-current lines and control signals. Maintain at least 50 mm spacing or use insulated barriers for adjacent runs. Label each conductor at both ends using shrink tubes or identification tags for rapid identification during maintenance.
Verify system continuity and insulation resistance using a multimeter and megohmmeter before energizing the panel. Ensure that breakers are sized to not exceed 80% of rated capacity and that all connections meet local electrical codes for safety compliance.
Identifying Line and Neutral Terminals in 208 Volt Panels
Mark each conductor clearly before connecting to the panel. Use red or black for live lines and white for neutral to prevent misconnection. Confirm the terminal labeling on the busbar with a multimeter for proper voltage identification.
Check for consistent phasing by measuring voltage between each hot terminal and neutral. Proper orientation ensures balanced load and avoids overheating. Always de-energize the panel before making adjustments and verify connections with torque specifications provided by the manufacturer.

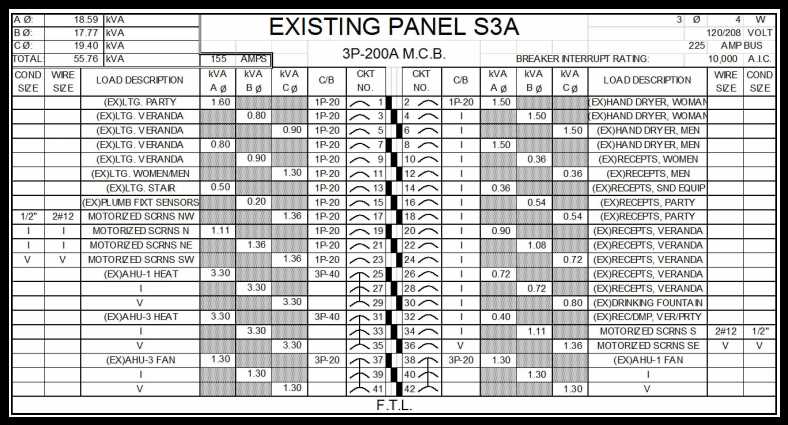

Create a reference map of all line and neutral connections inside the panel.
- Number each terminal sequentially
- Record which breaker or load is connected
- Note any shared neutrals or ground connections
This record simplifies troubleshooting and future upgrades while maintaining safety compliance with local electrical codes.
