To begin the installation of an audio system in your vehicle, ensure that the power, ground, and speaker connections are properly made. First, identify the wires responsible for providing power from the battery, the grounding wire, and the connections leading to your speakers. Each wire typically has a color code to help differentiate them, ensuring easy identification.
Next, before starting any connections, ensure the battery is disconnected to prevent any accidental shorts or power surges. You will also need to have the appropriate connectors and terminals for each wire to ensure a secure and lasting connection. Always use the correct wire gauges for the power requirements of your audio system components.

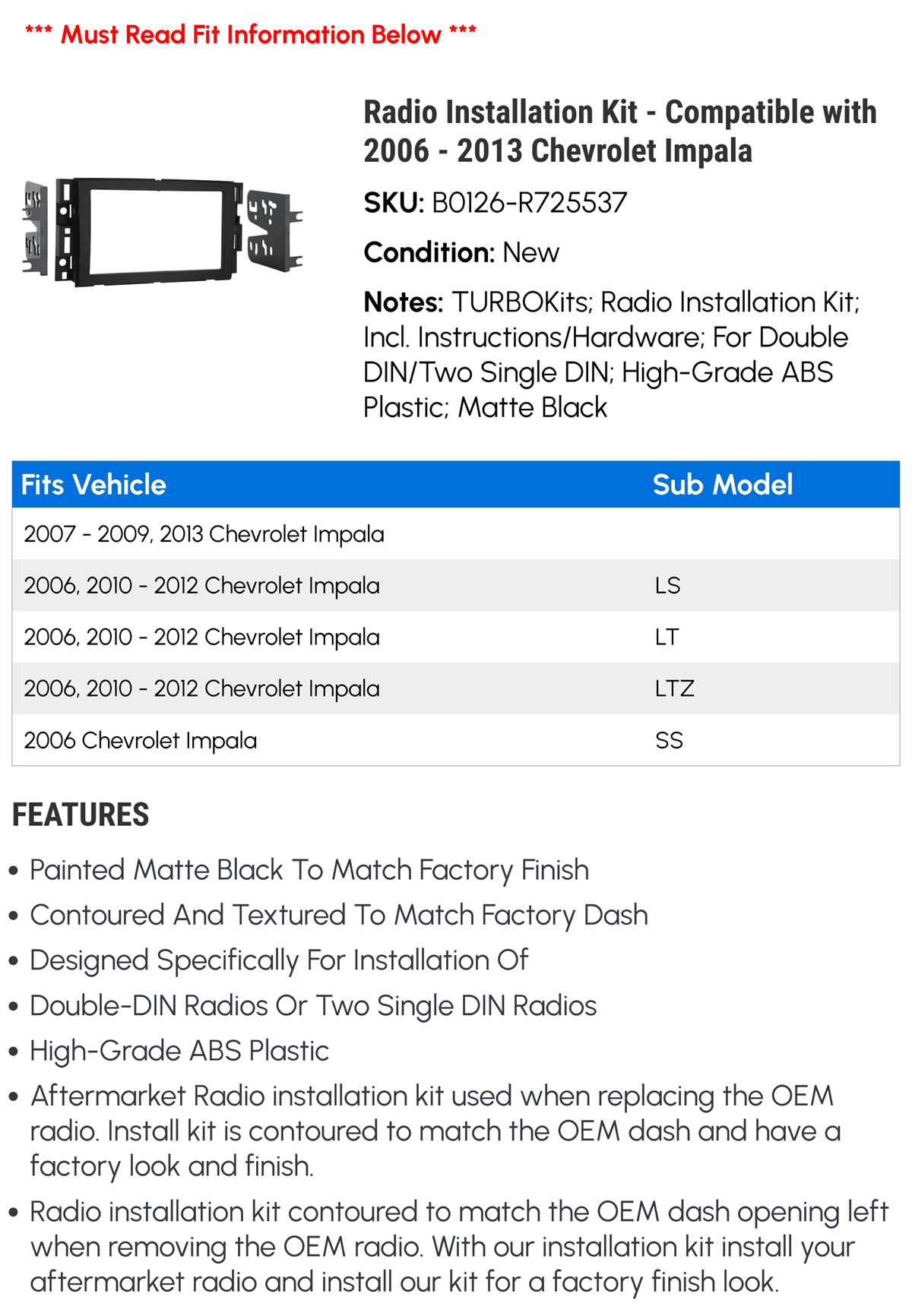

If you are replacing an existing audio unit, it’s essential to match the new unit’s wiring harness with the factory wiring for compatibility. Double-check that the new system’s voltage and current requirements align with what the car’s electrical system can support. Incorrect connections can lead to power issues or cause the system to fail entirely.
Lastly, if you’re unsure about the wiring setup or encounter any difficulty during installation, consult a service manual or seek professional help to avoid damaging the new audio equipment or the vehicle’s electrical system.
Identifying the Key Components for the Audio System
The primary components for setting up the vehicle’s entertainment system include the head unit, the power wires, ground connections, speaker wires, and the antenna input. The head unit is the core device, which provides control for all functions, including volume, tuning, and source selection. Power wires connect to the vehicle’s electrical system to supply power to the unit, while ground connections help complete the circuit. Speaker wires are responsible for transmitting audio signals to the speakers, and the antenna input allows for radio signal reception.
Ensure that each wire is correctly matched to its corresponding component. For example, the positive wire from the battery should be securely connected to the power input terminal on the head unit. Similarly, the ground wire should be attached to a solid, unpainted metal part of the vehicle’s frame to ensure good electrical contact. Properly securing these components is key to ensuring the system works correctly and safely without short-circuiting or power loss.
Step-by-Step Instructions for Connecting the Radio Wires

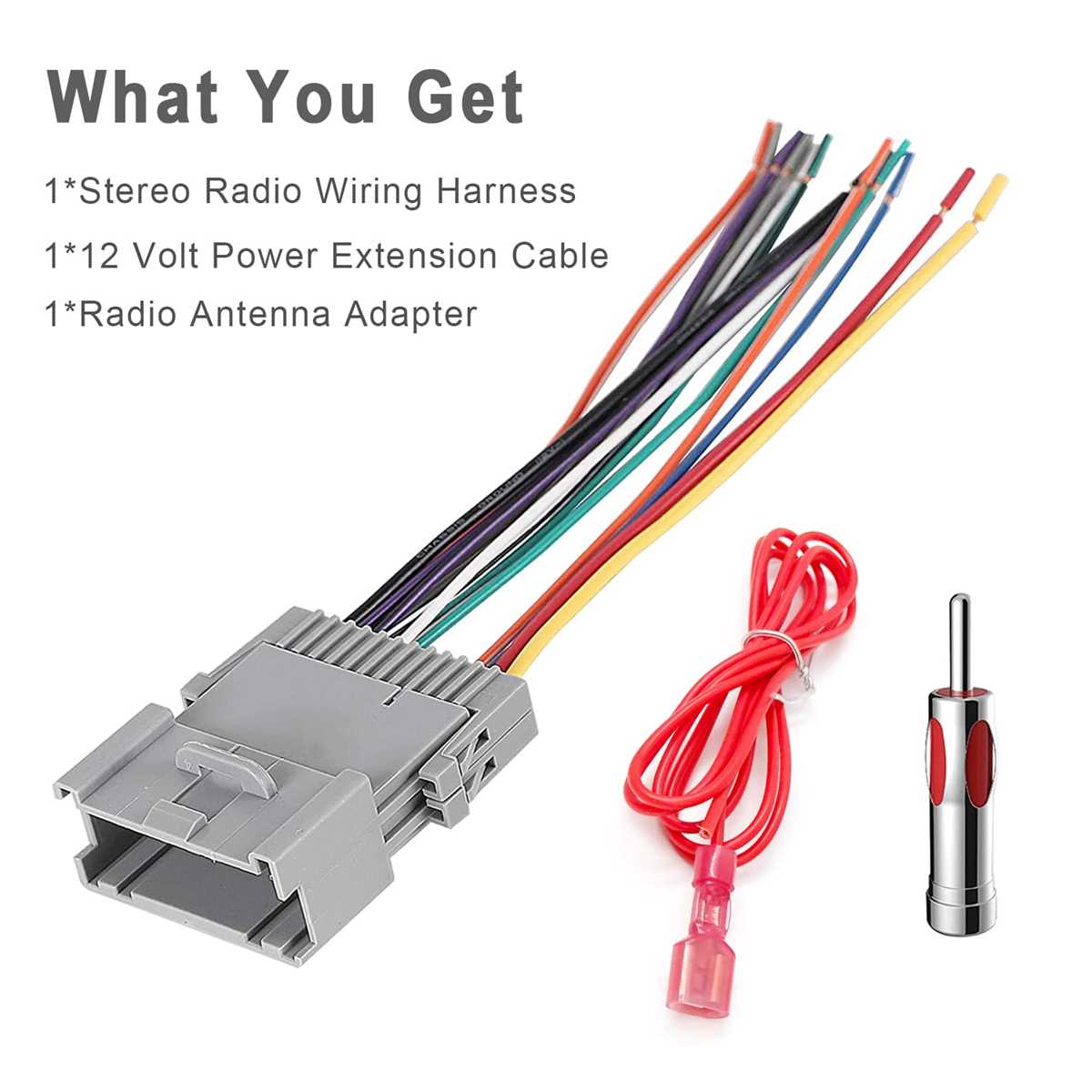

Start by gathering all the necessary tools and equipment. You’ll need wire strippers, a crimping tool, electrical tape, and a wiring harness adapter specific to your vehicle. Ensure that the vehicle is turned off and the battery is disconnected to avoid any electrical shorts.

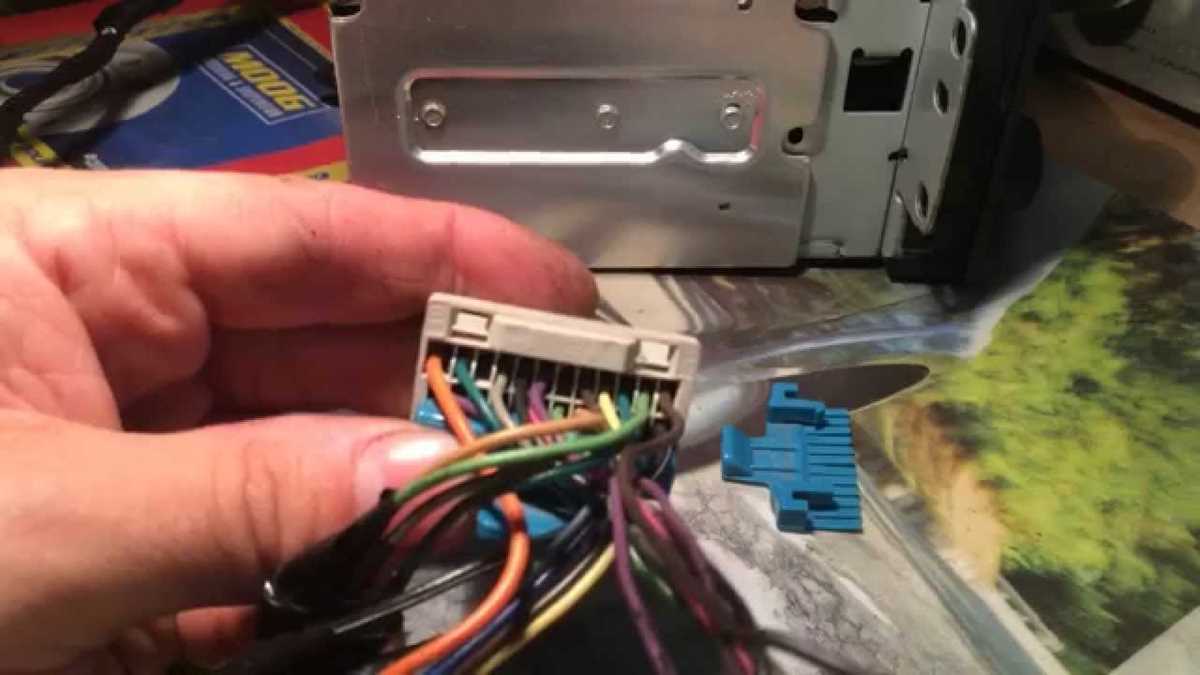

First, locate the harness connector in the dashboard area, which will be the point where the new unit is connected. If your vehicle doesn’t have an adapter, you will need to match each wire from the new system to the corresponding vehicle wire. The color-coding will typically follow a standard, but always double-check the manual for your specific make and model to avoid mistakes.
Next, strip a small section of the wire insulation on both the vehicle’s and unit’s wires. Use your crimping tool to attach the matching wires together. For example, connect the positive power wire from the vehicle to the power input of the unit. Ensure the connection is secure by using a crimp connector or twist-on wire connector for reliable conductivity.
After securing the power wires, proceed to the ground connection. Attach the ground wire from the vehicle’s harness to a bare metal part of the vehicle’s frame. This will ensure the electrical system is properly grounded and prevent any power issues. Use a ring terminal and tighten it securely to avoid any loose connections.
Now, connect the speaker wires. Match the speaker output terminals of the unit to the appropriate speaker wires in the vehicle. For example, connect the front left output to the front left speaker wire. Use wire nuts or connectors to secure the wires together, ensuring that no bare wire is exposed.
Finally, connect the antenna cable to the designated input on the unit. This will allow for proper signal reception. Make sure the antenna is plugged in fully, and no connections are loose to ensure optimal signal strength and quality.
Once all wires are connected, double-check each one to make sure there are no loose or exposed connections. After confirming that everything is secure, reconnect the vehicle’s battery, turn on the system, and test the unit to ensure all functions are working properly.
