Disconnect the battery before handling any audio modules to prevent short circuits and protect sensitive electronics. Verify zero voltage at all terminals with a multimeter before proceeding.
Identify each conductor by labeling speaker leads, power, and ground wires. Use colored sleeves or numbered tags to ensure connections are accurate and reduce the risk of reversing polarity.
Route all leads away from sharp edges and moving parts. Maintain a minimum clearance of one inch from heat sources such as the engine compartment to prevent insulation damage and intermittent faults.
Test connections individually by applying low current and checking continuity across terminals. Confirm that each speaker responds correctly and that the module powers on without drawing excess current.
2004 Silverado Stereo Connection Guide
Begin by disconnecting the battery to prevent accidental shorts while handling power and signal leads. Confirm zero voltage at the fuse block and speaker terminals before connecting any modules.
Identify each lead clearly: power feed, ground, and speaker outputs. Use colored sleeves or numbered tags to distinguish front and rear channels and maintain proper polarity across all connectors.
Attach the main power lead to the module input, tightening fasteners to 50–60 inch-pounds. Connect the ground to a clean chassis point, free of paint or rust, ensuring solid contact and minimal resistance.
Test each channel individually by applying low current and verifying that each speaker produces sound without distortion. Check that the control module powers up correctly and responds to inputs from the factory head unit.
Secure all leads with non-conductive clamps and route them away from sharp edges and moving parts. Perform a final system test with all speakers and volume levels to confirm reliable operation and prevent intermittent faults.

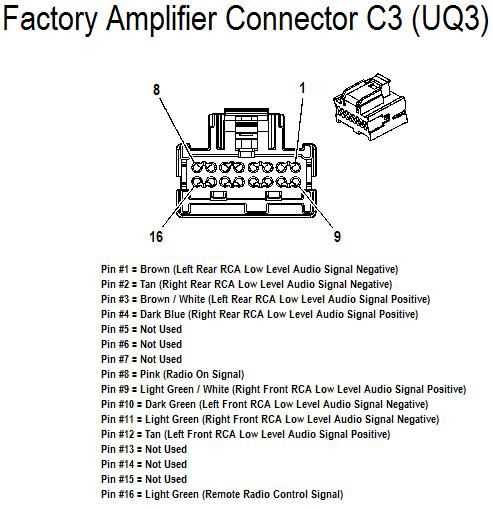

Identifying Terminals and Speaker Leads
Label each terminal before making connections to prevent cross-connection errors. Use a multimeter to verify continuity and ensure each point corresponds to its intended channel.
Distinguish speaker leads by color coding or numbered tags. Front and rear channels should be marked separately, and positive and negative lines must be identified to maintain proper polarity.
Check insulation and conductor condition before insertion. Frayed or exposed wires can create shorts or signal interference, so trim and strip carefully to maintain a clean contact surface.
Use a sequential approach for connections:
- Connect front left and right leads first
- Attach rear left and right channels next
- Secure any center or subwoofer outputs last
Verify each channel with a low-voltage signal to confirm sound output. Adjust and re-check connections if any distortion or weak signals are detected to ensure reliable performance across all modules.
