If you’re facing electrical issues with your engine, it’s crucial to understand how to trace and fix the connections effectively. Start by identifying the key components in your engine’s electrical setup–typically the ignition system, battery connections, and the main power circuits. Pay special attention to the wiring leading to and from the ignition coil and stator, as these are common failure points. Use a multimeter to check continuity and voltage in different areas, and be sure to inspect any fuses or relays for damage.
The key to proper maintenance is ensuring that all wires are correctly connected according to the engine’s specific layout. A common mistake is mismatching the terminal connections, which can lead to short circuits or prevent the motor from starting. Refer to a detailed schematic for correct wire placements, and double-check the connections before powering up the system. If you’re rewiring, ensure that each wire is properly insulated to avoid shorts caused by exposed connections, particularly in wet environments.
If the motor doesn’t start or stalls intermittently, it may be due to faulty electrical parts such as the ignition switch, coil, or ground connections. Inspect each component for signs of wear or corrosion. In cases of persistent issues, replacing the stator or rectifier/regulator is often necessary. Always clean and replace corroded connectors, and consider using dielectric grease to prevent further corrosion over time.

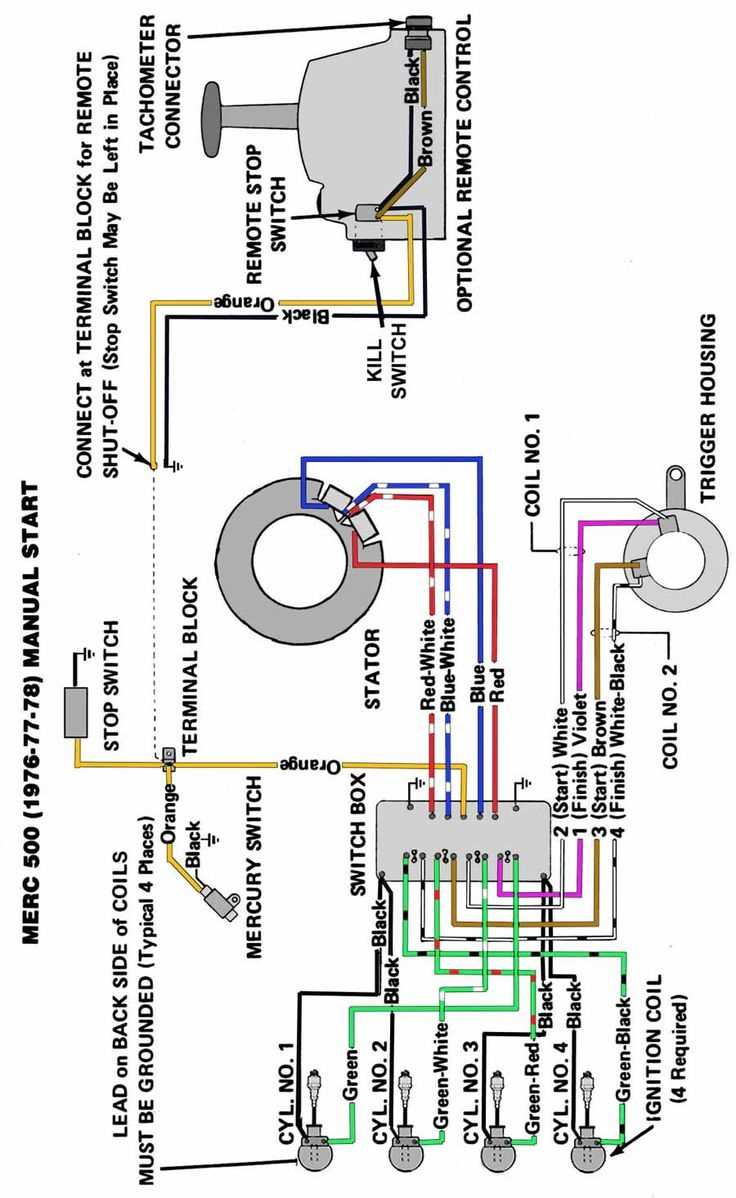

2 Stroke Engine Electrical System Layout and Repair Guide
To properly diagnose electrical issues in a 2-stroke motor, begin by understanding the layout of the electrical components. Start with the ignition coil, stator, and the connection to the battery. These are the core parts of the power system, and problems in any of these can cause starting issues or poor performance. Check the voltage across the ignition system to ensure that it’s within the manufacturer’s specified range.
Next, verify the condition of the wiring connections between the engine and the battery. Ensure that all terminals are clean and free from corrosion. Corrosion can cause a weak connection, leading to intermittent starting problems or complete failure. Use a wire brush or corrosion remover to clean the terminals and then apply dielectric grease to protect them from future damage.
Identifying Faults in the Ignition System
If your motor fails to start or stalls while running, focus on the ignition components. Begin by checking the ignition switch, coil, and stator. A common failure point is the coil, which can wear out over time due to heat exposure. Use a multimeter to test the coil’s resistance and compare the results to the motor’s manual. If the readings are outside the specified range, replacement is necessary.
The stator is another part that is prone to wear. It generates the electrical current that powers the ignition system. A faulty stator can lead to erratic engine behavior or a complete failure to start. To test the stator, check for continuity between the leads and ensure there is no short circuit. If a fault is detected, the stator will need replacement.
Inspecting the Rectifier/Regulator
The rectifier/regulator is responsible for converting AC current from the stator into DC power to charge the battery. If the battery is not charging properly, the rectifier/regulator is often the culprit. Test the unit with a multimeter to ensure it is functioning correctly. If it’s not, replacing the rectifier/regulator will likely resolve the issue.
Another potential issue is damaged or frayed wiring. Inspect all cables for visible signs of wear and tear, especially those near the engine where vibrations can cause damage. Repair or replace any cables that are not in good condition, and ensure that they are routed away from hot engine parts to avoid further damage.
When rewiring, follow the wiring layout from the motor’s manual to ensure all components are connected correctly. Miswiring can cause short circuits or prevent the engine from starting. Be sure to secure all wires properly to avoid chafing and damage from vibrations.
Lastly, check the ground connections. A poor ground connection is a common cause of engine performance issues. Clean and secure all ground connections to ensure a solid path for current flow. If you are unsure of the ground connection locations, consult the motor’s manual for guidance.
By following these steps and using a clear electrical layout, you can ensure your motor runs smoothly. Always refer to the manufacturer’s specifications for exact measurements and replacement procedures when handling electrical repairs on your engine.
