Use a three-position selector switch to alternate between the bridge and neck sensors or combine both for a fuller sound. Connect each transducer to its corresponding volume pot before sending the signal to the output jack.
Ensure all grounds are linked to the common back of the pots to reduce hum and maintain signal clarity. Shielding the cavity with conductive paint or foil further minimizes interference.
Route the hot leads carefully to avoid crossing or overlapping, which can cause unwanted noise. Maintain consistent solder points and check continuity at each connection to prevent signal dropouts.
Adjust tone capacitors according to the type of magnetic coil to achieve balanced highs and lows. Start with 0.022µF for standard single coils and adjust slightly for humbuckers or dual coil setups.

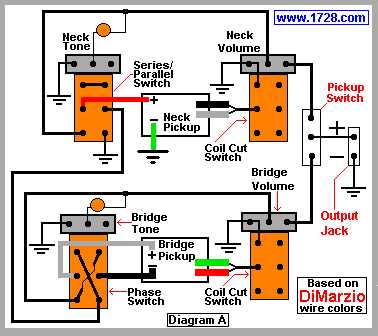

Two Sensor System With Selector Switch and Potentiometer Connections
Install a three-way toggle switch to control which sensor signal reaches the output. Connect the bridge sensor to one terminal, the neck sensor to the other, and the common lug to the master volume pot input. This setup allows individual selection or combined output from both coils.
Link each sensor to its dedicated tone control if separate tonal shaping is desired. Use a 0.022µF capacitor for single-coil style sensors and adjust slightly for dual-coil designs. Ensure all ground connections meet at a common point to prevent noise.
Route the leads carefully to avoid crossing signal and ground paths, which can introduce hum. Keep the connections soldered firmly and verify continuity between switch, pots, and the output jack before final assembly. Proper layout minimizes interference and preserves dynamic range.
Consider shielding the cavity with conductive paint or foil to block electromagnetic interference. Arrange volume and tone controls so the shortest path from the switch to each potentiometer is maintained. This reduces signal loss and ensures consistent response across all switch positions.

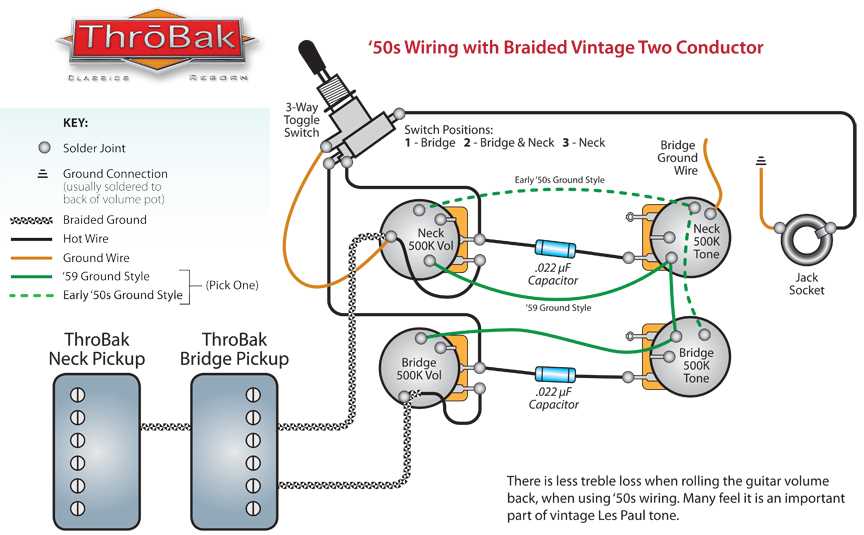

Connecting Two Coil Sensors to a Three-Position Selector With Master Volume
Begin by soldering the lead from the bridge sensor to one terminal of the three-way toggle switch. Ensure the ground wire is secured to the back of the volume pot to maintain a consistent reference point. This connection allows the signal to travel cleanly to the output when the switch is in the bridge position.
Attach the neck sensor lead to the opposite terminal of the toggle switch. Confirm that both sensor grounds converge at the same point on the volume pot chassis. This prevents ground loops and minimizes unwanted hum in combined switch positions.
Connect the common lug of the selector directly to the input lug of the master volume potentiometer. This central path ensures that whichever sensor is selected, the signal passes through the volume control, allowing smooth adjustment from zero to maximum output.
Check continuity between the switch terminals and the volume pot output before completing the assembly. Use a multimeter to verify that each sensor engages correctly in its respective switch position and that the combined middle position merges both signals without phase issues.
Finalize connections by shielding the cavity and routing all leads neatly to prevent interference. Short, direct paths from sensors to the switch and from the switch to the volume pot preserve signal clarity and maintain consistent tonal response across all positions.
