Start by identifying the correct wires for power, ground, and speaker connections. The power wire is typically colored red and must be connected to the vehicle’s ignition or accessory circuit. The ground wire, often black, should be connected to a clean, metal part of the vehicle’s frame to ensure proper grounding and reduce noise interference.
Next, the speaker wires should be matched to the corresponding terminals on the audio unit. Typically, these will be labeled with color codes or numbers to help with correct identification. The positive speaker wire usually has a stripe or is marked with a different color than the negative one. It’s important to follow these markings to avoid issues with sound quality or damage to the system.
Once all wires are connected, check the connections for tightness and security. Loose connections can cause poor performance or malfunctions. A multimeter can help test the power and ground connections to ensure they are working as expected. Finally, test the system before fully assembling it to ensure everything is functioning correctly.
Connecting the Audio System in Your Vehicle
Start by ensuring that the power lead is properly connected to the ignition or accessory circuit. This will allow the audio system to turn on only when the vehicle is running. Make sure the wire is secure, and use a fuse rated correctly to prevent any potential damage to the system.
The ground wire, typically black, must be connected to a solid metal point within the vehicle. This ensures proper grounding and helps to reduce electrical interference that can affect the sound quality. Check that the metal contact is clean and free of rust for optimal conductivity.
Connecting Speaker Wires

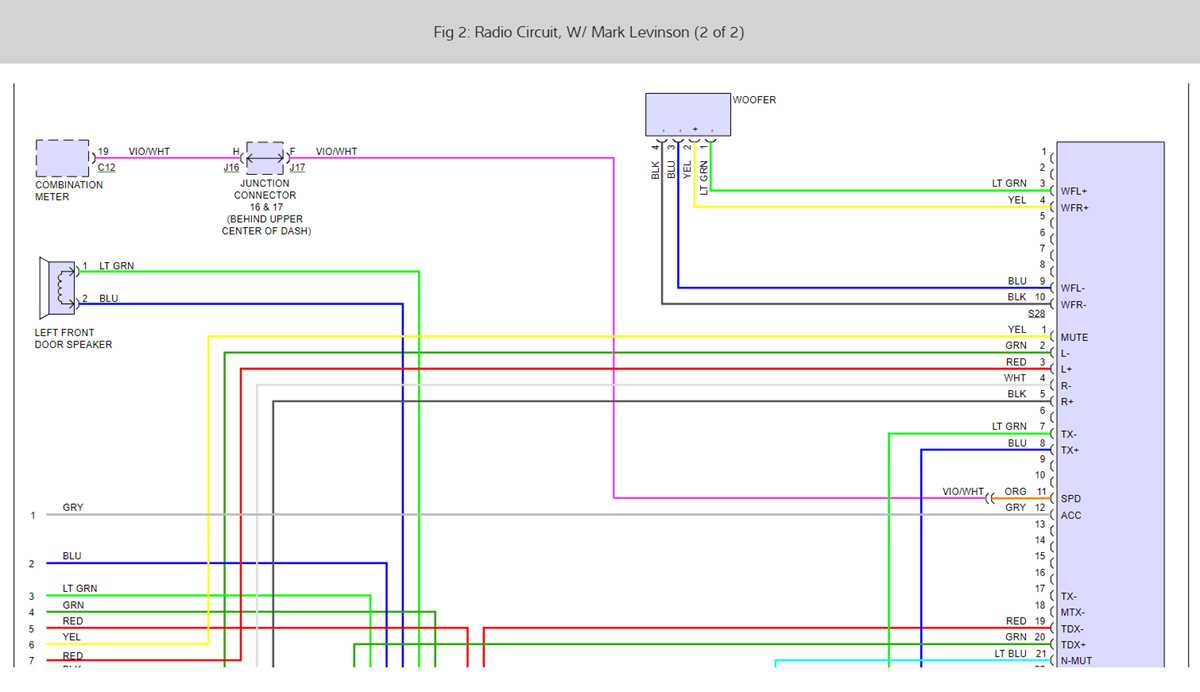

Next, connect the speaker wires. Usually, these wires are color-coded: positive leads are typically marked with a stripe or a different color, while the negative leads are plain. Ensure that each speaker wire is correctly attached to its corresponding terminal on the audio unit. This step is critical to achieving balanced sound output.
- Check the connection of the left and right channels to avoid phase issues.
- Ensure that all speaker connections are securely fastened to avoid loose connections during operation.
After the connections are made, double-check that all wires are correctly attached and that there are no exposed ends that could cause shorts. Test the system briefly before finalizing the installation to ensure all components are functioning as expected.
How to Identify and Connect the Power Wires in Your Audio System
Begin by locating the power wire that connects to the vehicle’s ignition or accessory circuit. This wire is typically red and is used to turn on the system when the vehicle is in the “on” or “accessory” mode. It must be securely connected to the correct terminal on your control unit.
Once identified, strip a small portion of the wire to expose the copper. Use a high-quality connector or crimp to attach the wire to the designated terminal on the audio unit. Avoid using cheap connectors, as they may not provide a stable connection, leading to power issues later on.
The next step is to connect the ground wire. This is usually black and should be attached to a clean, unpainted metal surface in the vehicle. Ensure that the metal contact is free of rust or paint, as these can interfere with the electrical connection and cause instability in the system’s performance.
To confirm the ground wire is properly connected, use a multimeter to check for continuity. Place one probe on the ground wire and the other on a known metal part of the vehicle. If you get a reading, the ground is secure, and the connection is solid.
The power supply connection is another critical aspect of the installation. Verify that the wire’s gauge is suitable for the system’s power requirements. If the wire is too thin for the current load, it could overheat, causing a fire hazard or malfunction. Refer to your audio unit’s manual for the recommended wire gauge and fuse rating.
Checking the Fuse Rating
Before finalizing the power connection, check the fuse rating for your system. If the fuse is too large, it won’t protect your system properly in case of a short circuit. On the other hand, if the fuse is too small, it may blow during normal operation. Use a fuse that matches the specifications in the manual for your system.
After the power and ground connections are made, test the system by briefly powering it on. Verify that the system powers up when the vehicle is turned on and that there is no flickering or unstable performance. If you notice any issues, double-check the connections and fuse ratings.
Finally, tidy up the wiring by securing the power and ground cables to prevent any movement or rubbing against other components. Use zip ties or adhesive cable clips to keep the wires neatly arranged, reducing the risk of wear and tear on the connections over time.
