Locate the factory harness: The easiest way to integrate a new head unit is by accessing the vehicle’s original connector behind the dashboard. Each pin corresponds to a specific function, including power, ground, speaker feeds, and illumination. Labeling each lead before disconnecting reduces errors and ensures smooth installation.
Identify color codes carefully: Standard tones for front and rear channels differ from auxiliary outputs. Front speakers typically use white and gray shades with positive stripes, while rear outputs often appear in green and purple variations. Misreading these signals can result in reversed polarity or no sound at all.
Confirm voltage and ground points: Using a multimeter, test for constant 12V, switched 12V, and reliable chassis grounding. Proper verification prevents blown fuses and protects aftermarket audio components from premature failure.
Plan for amplifier or subwoofer connections: If adding external modules, separate the signal and power wires from factory harnesses to reduce interference. Keep high-current cables away from delicate signal leads to maintain clarity and prevent humming noises.
Check mounting and clearance: Some replacement units require additional brackets or spacers due to dash curvature and space limitations. Measuring depth and connector reach before installation avoids trimming panels or damaging the console.
1999 Dodge Ram 1500 Stereo Wiring Diagram
Connect the ignition lead to the red wire and the constant 12V supply to the yellow cable to maintain memory functions. Front speakers use gray and white pairs, while rear channels run through purple and green wires; ensure polarity matches the positive and negative terminals to avoid phase issues. Ground the chassis wire firmly to the metal frame near the dash to prevent intermittent noise.

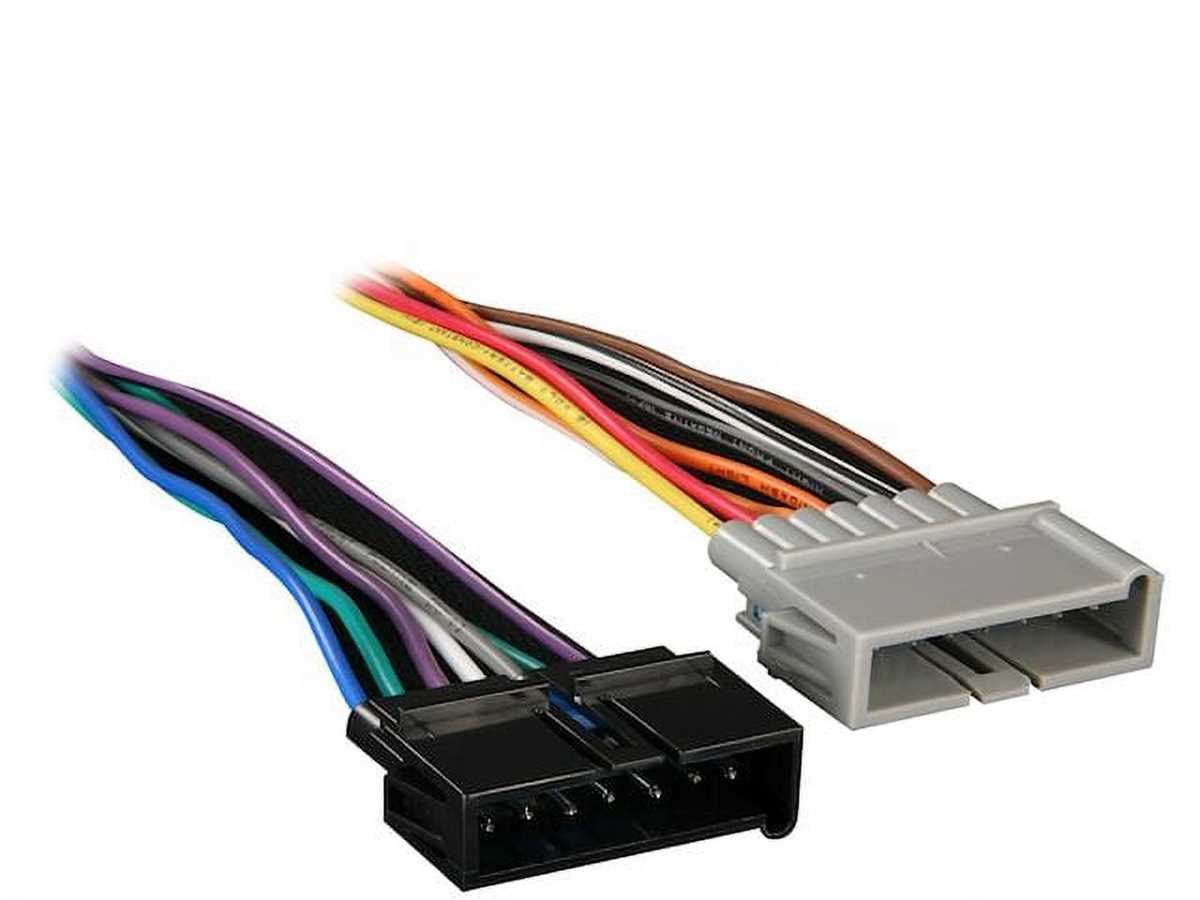

For aftermarket head units, the factory connector often splits into separate harnesses. Use crimp connectors or solder joints to secure connections, and wrap them with heat-shrink tubing for durability. If adding an amplifier, route the signal from the RCA pre-outs, keeping power and signal lines separate to minimize interference. Testing each speaker with a multimeter before final assembly confirms continuity and proper channel assignment.
Identifying Factory Wire Colors for Head Unit Connections
Use the color coding printed on the vehicle’s harness to match each lead accurately. Typically, yellow carries constant 12V, red supplies switched ignition power, black serves as ground, and blue with a white stripe triggers amplifier turn-on. Speaker outputs are usually paired: white/white with black stripe for front left, gray/gray with black stripe for front right, green/green with black stripe for rear left, and purple/purple with black stripe for rear right. Verifying these with a multimeter prevents misconnection and potential damage.
Label each wire before disconnecting the original unit to maintain orientation. Factory harnesses may include additional colors like orange for illumination or brown for speed-sensitive volume control, depending on trim options. Consulting the service manual or a reputable vehicle-specific connector guide ensures that auxiliary feeds and remote turn-on lines are identified without guesswork, avoiding shorts or intermittent audio issues.
