To properly connect a heating unit to the electrical system, it is critical to follow specific steps and use the correct materials. Begin by ensuring that the power supply meets the correct specifications for your unit. Incorrectly installed systems can cause safety hazards and reduce the efficiency of the system.
The connections must be made securely, and it is important to understand the function of each terminal within the setup. Ensure the power lines are connected correctly to prevent malfunctions. Additionally, pay attention to grounding the unit properly to avoid electrical shocks.
Consult the manufacturer’s guidelines for the specific unit you’re working with, as different models may have slightly different installation processes. In general, be sure to verify the safety measures, such as circuit breakers or fuses, that can help prevent overloads or faults. Testing the system before regular use is also crucial to confirm that all connections are stable and functioning correctly.
120 Volt Heater System Installation Guide
Before starting the installation, ensure that the power supply is turned off to avoid electrical hazards. Use a multimeter to verify that the power is disconnected. Select the correct circuit breaker size according to the unit’s specifications. Typically, a 15-amp breaker is suitable for most systems, but always check the manufacturer’s requirements.

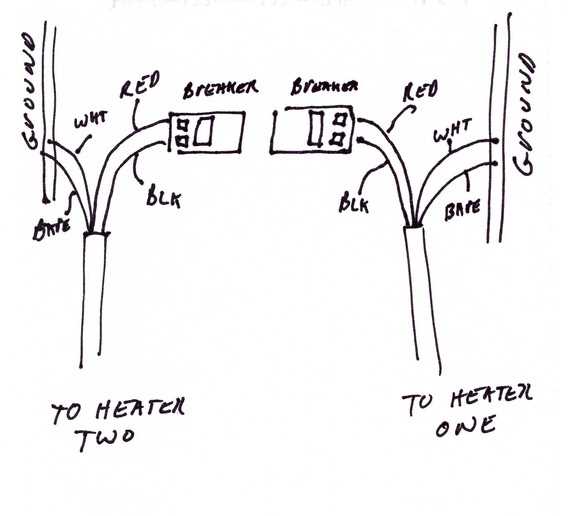

The next step is to identify the appropriate terminals on the unit. Typically, these terminals will include a hot, neutral, and ground connection. The hot wire should be connected to the terminal marked “L” or “hot,” while the neutral wire connects to the neutral terminal. Ensure that the ground wire is securely attached to the grounding point on the unit.
Use the proper gauge for the wires based on the length of the wire run and the power demand of the unit. A 12 or 14 gauge wire is typically used for 15-20 amp systems. If you’re unsure about which gauge to use, consult the product’s manual or a professional electrician.
When running the wires from the breaker box to the unit, make sure that they are securely fastened and kept away from any sharp edges. Use appropriate conduits or wire insulation to protect the wires from damage. Also, consider using wire clamps to hold the wiring in place, ensuring that it doesn’t become loose over time.

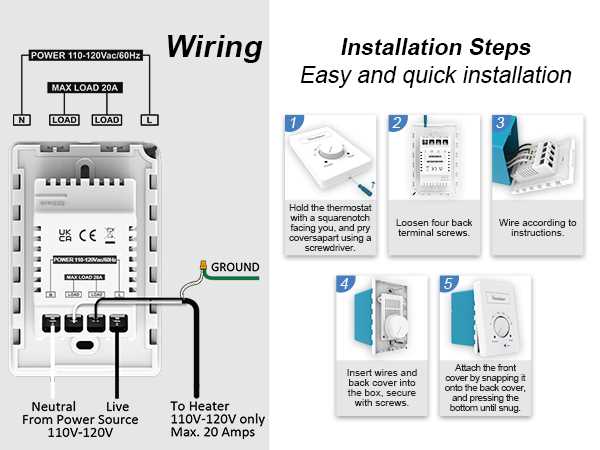

Once the wiring is complete, connect the unit to the thermostat. If you are using a manual thermostat, follow the manufacturer’s instructions to connect the control terminals. For a smart thermostat, follow the same basic wiring principles, but ensure compatibility between the thermostat and the unit’s electrical components.
Before finishing the installation, check for any exposed wires or connections that could potentially cause short circuits. Double-check the connections to ensure that each wire is securely attached to its respective terminal. Once everything is in place, turn on the power and test the system to verify it’s functioning correctly.
Finally, it’s important to follow up with routine maintenance, including checking for dust or debris buildup on the unit and ensuring that the wiring is still intact. This ensures long-term safe operation and optimal performance of the heating system.
Understanding the Wiring Requirements for 120 Volt Heaters
To properly install a system, the first step is to select the correct breaker size based on the unit’s power specifications. For most home units, a 15-amp breaker is sufficient. However, always check the manufacturer’s manual for specific requirements, as some models may demand a larger breaker.
Use the appropriate gauge for the electrical conductors. A 14-gauge wire is typically suitable for circuits up to 15 amps, while a 12-gauge wire is recommended for heavier load units. Ensure that all wires are insulated to prevent any short circuits or exposed connections, which can lead to system failures or hazards.
Ensure that the connections to the unit are secure. Properly connect the live wire to the designated terminal, and ensure the neutral wire is attached to the correct terminal. The ground wire should always be connected to the grounding point on the system. This is a critical step for safe operation, as a poor ground connection can lead to electrical malfunctions.
Finally, consider using conduit or cable clamps to protect the wires during installation. This helps prevent accidental damage to the wires, especially when they are run along the walls or through tight spaces. Once everything is securely connected, check the system by powering it up and testing for any electrical issues or improper connections.
