For reliable and stable operation of a low-voltage light setup, it’s crucial to use the correct power conversion. A dedicated unit is necessary to convert higher input power to the desired output, especially when dealing with specific lighting components. Understanding how to set up such a system is important for achieving consistent performance without damaging your equipment.
Start by selecting the right components, such as resistors, capacitors, and transistors, which will help regulate the current flow to your lights. Pay attention to the maximum current capacity of each part, ensuring that your setup can handle the power demands without risk of overheating or failure.
Once your components are ready, the assembly process involves carefully connecting the power source to the control mechanism that adjusts the output. A well-designed setup will not only extend the lifespan of your lights but also enhance their brightness and uniformity.

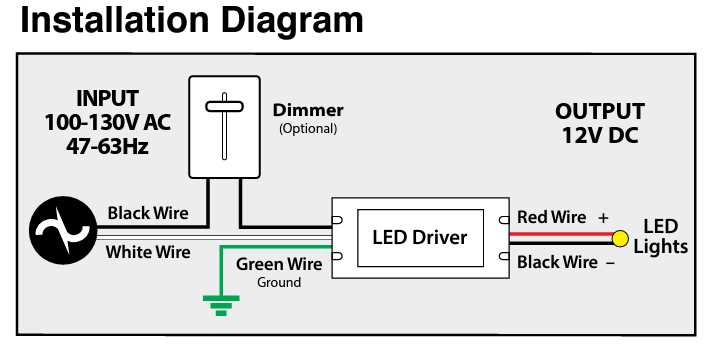

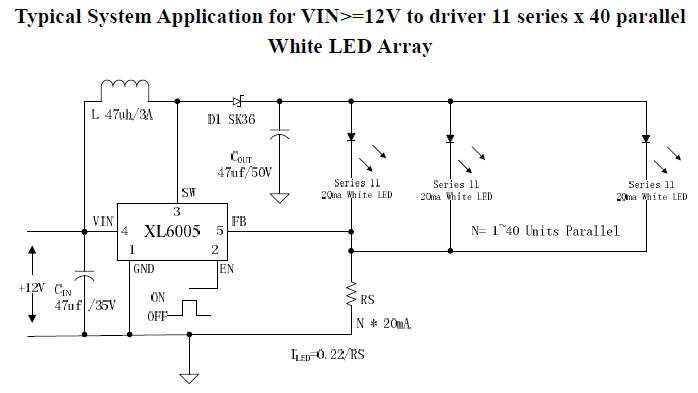

12 Volt LED Driver Circuit Diagram
When setting up a low-power light system, ensure that you choose the correct resistor values to regulate the current. A typical configuration includes a constant current source that maintains a steady output, preventing fluctuations that could damage the lights. The power input needs to be appropriately scaled down to match the components’ needs. For this, a transformer or switching regulator can be used to convert higher input levels to the required output.
For a basic build, the setup includes key components like a capacitor to smooth out power surges and a diode to protect against reverse currents. Consider using a current-limiting resistor for each channel to ensure the longevity of the lighting system.
- Choose resistors with a wattage rating higher than the expected load.
- Use a heat sink if necessary to dissipate excess energy and prevent overheating.
With proper attention to these elements, the final setup will ensure both safe operation and optimal performance.
How to Choose Components for a 12 Volt LED Driver Circuit
Select the correct power supply to match the required output. For a stable power conversion, ensure that the supply can handle the expected current and voltage demands without significant fluctuations. Look for a supply with a slightly higher rating than required to prevent overheating or instability. A reliable option is a regulated source that provides constant output under varying loads.
The current-limiting resistor is crucial for maintaining safe operation. Calculate the proper value based on the LED’s forward current rating. The resistor should be chosen to ensure the light components receive a consistent current without being overdriven. Use Ohm’s law to determine the appropriate resistance value: R = (Input Voltage – LED Forward Voltage) / Desired Current.
A capacitor is often necessary to smooth out any ripple caused by power conversion. Choose a capacitor with a voltage rating that exceeds the maximum input voltage. A larger capacitance value will help reduce high-frequency noise and voltage spikes, improving overall stability. Typically, an electrolytic capacitor is a good option for this task.
For more advanced setups, consider integrating a regulator or transistor to manage current flow. A constant current regulator is an excellent choice if your setup requires a steady, uninterrupted power supply. It automatically adjusts the output to keep current constant despite any fluctuations in input voltage or load. Transistors, such as MOSFETs, can also help efficiently switch the power on and off as needed.
Finally, don’t overlook the importance of proper heat dissipation. When dealing with higher power outputs, components like resistors and transistors may generate significant heat. Add a heat sink or choose components rated for higher temperatures. This will prevent thermal damage and ensure long-term reliability. It’s always better to overestimate the cooling needs than to risk component failure due to heat buildup.
