Use a direct battery feed with a dedicated relay and short ground return when assembling a 12-V DC oil-driven lift system. The positive lead from the battery should run through a high-current fuse (typically 150–200 A) positioned within 20–30 cm of the battery terminal. From the fuse, route the cable to the relay contact stud, then continue to the electric motor terminal that drives the fluid pump. This arrangement reduces voltage drop and prevents overheated conductors during heavy load cycles.
The relay coil circuit should connect to the control switch through a smaller gauge conductor (commonly 16–18 AWG). When the switch closes, current energizes the relay coil, pulling the contact plate and delivering battery current directly to the motor. Ground return must attach to a clean chassis point or battery negative post using thick cable equal to the supply conductor, typically 2–4 AWG for compact dump trailer or liftgate assemblies.

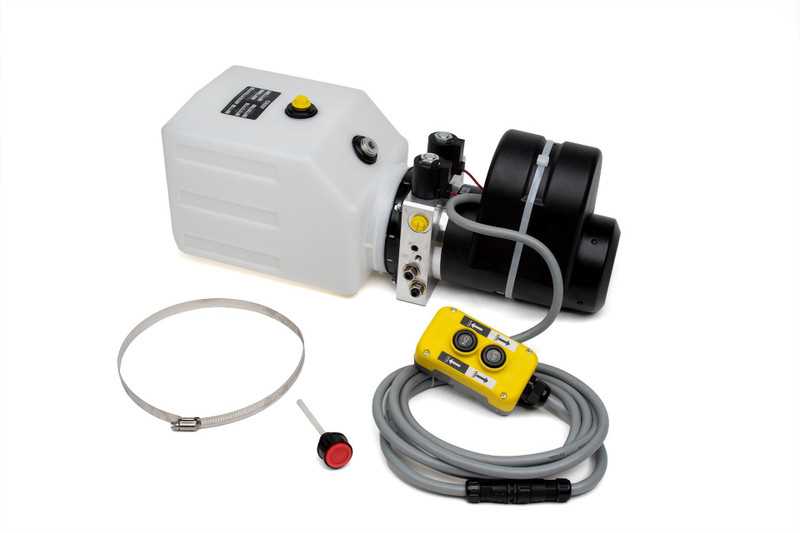

For directional control blocks that raise and lower equipment, include two solenoid valves. Each valve receives a signal line from a rocker or pendant controller. The controller distributes low-amperage signals to the valve coils while the motor circuit remains isolated through the relay. Cable routing should avoid sharp frame edges, exhaust heat, and moving suspension members. Protective loom and rubber grommets prevent insulation damage.

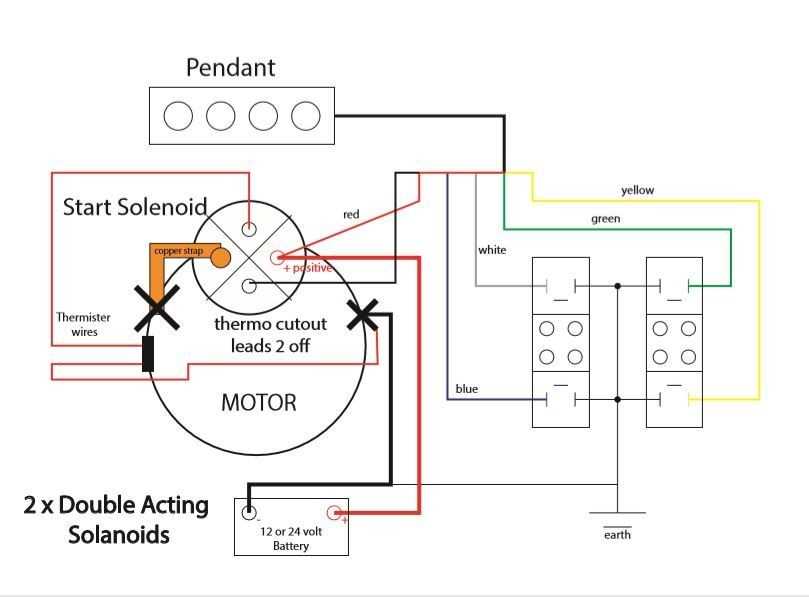

A clear circuit map should label battery feed, fuse link, relay terminals, motor posts, control switch lines, and valve coils. Mark wire colors whenever possible–red for supply, black for ground, and yellow or blue for control signals. Accurate labeling shortens troubleshooting time when a lift mechanism fails to respond or the pump motor turns without valve activation.
12-V DC Oil-Pressure Lift System Connection Layout
Connect the 12-V battery source directly to the starter relay using a 6–8 AWG copper cable; this minimizes resistance during motor engagement of the fluid-pressure pump. Place a 150–200 A fuse within 20–30 cm of the battery positive terminal to protect the circuit from short events. The negative lead should run from the battery to a clean chassis ground point, then continue to the pump motor housing with the same gauge cable to avoid voltage drop under load.
The control path should pass through a momentary switch connected to the relay coil terminals. Use 14–16 AWG conductors for this signal circuit because the relay coil usually draws less than 2 A. One side of the switch receives battery positive through a small inline fuse (5–10 A), while the opposite side feeds the relay activation terminal. When the switch closes, the relay bridges the heavy battery cable and the pump motor terminal, allowing high current flow without routing large current through the dashboard control.
Solenoid-driven valves inside the oil-pressure assembly typically require separate control lines. Each valve coil should receive positive feed through a dedicated switch or controller output, while the coil return connects to chassis ground. Cable size of 16–18 AWG is adequate because valve coils usually draw between 0.8 and 1.5 A. Install diode suppression across each coil (banded side toward positive) to prevent voltage spikes from damaging switches or electronic controllers.
Route cables away from sharp edges, heat sources, and moving parts of the lift mechanism. Secure runs every 25–30 cm with insulated clamps and protect exposed sections using corrugated loom tubing. A clear connection scheme should show battery, fuse, relay, control switch, pump motor, and valve coils as separate nodes; labeling current ratings and cable gauges helps technicians diagnose faults quickly during maintenance.
Identifying Terminals and Wire Connections on a 12-DC Hydraulic Drive Motor and Solenoid
Check the large threaded studs on the contactor first: one stud links directly to the battery positive lead, while the opposite stud routes current to the motor terminal. The battery side usually carries a thicker red cable (often 4–6 AWG in lift-gate or dump trailer assemblies). The motor side often runs with the same gauge but may include a short jumper into the motor housing terminal. A small post on the contactor cap accepts the trigger lead from the control switch; this thinner conductor (commonly 14–18 AWG) activates the internal plunger that bridges the two heavy studs.
The motor casing normally serves as the negative return path. A dedicated ground strap or cable connects the battery negative to a clean mounting bolt on the motor body or pump frame. Paint, corrosion, or thread sealant under this point raises resistance and leads to slow rotation or intermittent clicking from the contactor. The motor itself typically exposes a single insulated stud or lug for the positive feed coming from the contactor output. Tighten the ring terminal with a lock washer and torque the nut firmly; loose contact points create heat and voltage drop under load.
Inspect the contactor coil terminals carefully. One small terminal receives the signal from the control pendant or dashboard switch, while the second small terminal ties to chassis ground or a shared negative bus depending on the model. Many trailer lift assemblies route the control lead through a 15–20 A fuse before reaching this coil terminal. Use a multimeter: with the switch pressed, the control lead should show battery potential relative to ground. If the coil clicks but the motor stays silent, measure continuity across the two large studs while activated; a healthy contactor drops resistance close to zero, confirming proper current transfer to the motor.
