Start by turning off the power supply before attempting any electrical work. This is a vital safety step to prevent electrical shock. Next, gather all necessary tools, including a screwdriver, wire stripper, and wire connectors. A basic understanding of electrical connections is also helpful to ensure proper installation.
For a simple installation, you will connect the incoming live wire to the input terminal and the outgoing live wire to the output terminal of the control device. The neutral wire remains disconnected from the device itself and should only connect directly to the fixture or light source. This basic configuration allows the device to control the light intensity by adjusting the electrical flow through the circuit.
Ensure that each wire is securely attached to the correct terminal and that there are no exposed wire ends. A poorly connected wire can cause the device to malfunction or create a fire hazard. Once the connections are properly made, mount the device in its housing and replace the cover plate before testing the system.
After installation, turn the power back on and test the device by adjusting the intensity of the connected light. If it doesn’t work as expected, double-check the wiring for any loose or incorrectly placed connections. Troubleshooting at this stage is crucial to ensure everything operates correctly and safely.

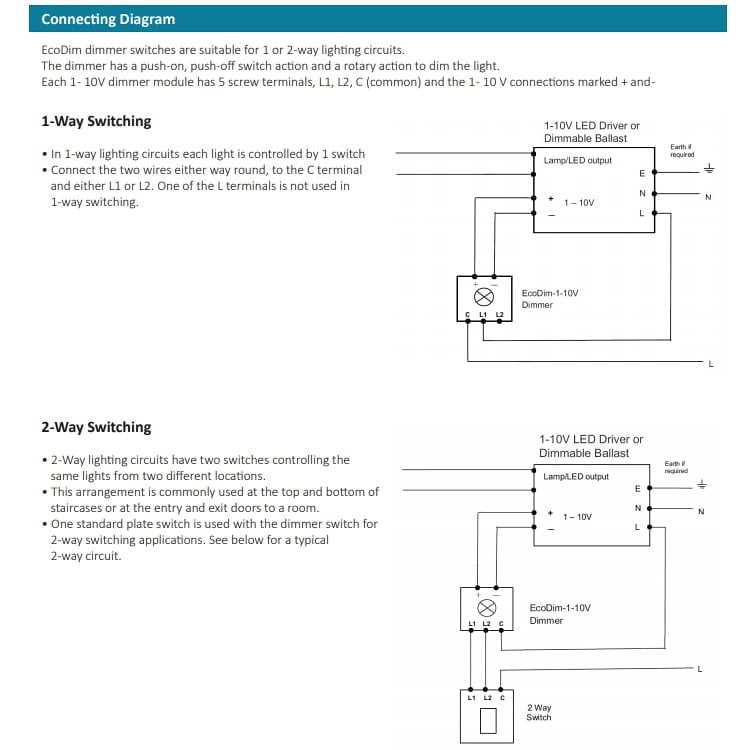

1 Way Dimmer Switch Wiring Diagram
First, connect the live wire from the power source to the input terminal of the control device. This is typically marked as the “live” or “L” terminal. The output terminal, usually marked as “out” or “load,” should then be connected to the light fixture. This setup allows you to control the flow of electricity, adjusting the light intensity by altering the electrical resistance.
Next, ensure the neutral wire is securely attached directly to the fixture or light source. It should not be connected to the device, as the purpose of the control is to manage the live wire only. The ground wire, if present, must also be connected to the ground terminal of the control device to ensure safety and prevent electrical hazards.
After securing all connections, mount the control device in its appropriate location and test the setup by turning the power back on. Adjust the device to check for smooth functionality. If the device does not respond as expected, double-check the connections to make sure all wires are correctly placed and tightened.
Preparing the Electrical Connections for a 1 Way Dimmer Switch
Begin by ensuring that the power is turned off at the breaker to prevent any electrical hazards during the installation. You will need to gather the following tools: a screwdriver, wire strippers, electrical tape, and a voltage tester. Double-check that all wires are correctly identified, especially the live and neutral wires, as improper connection can cause malfunctions or safety issues.

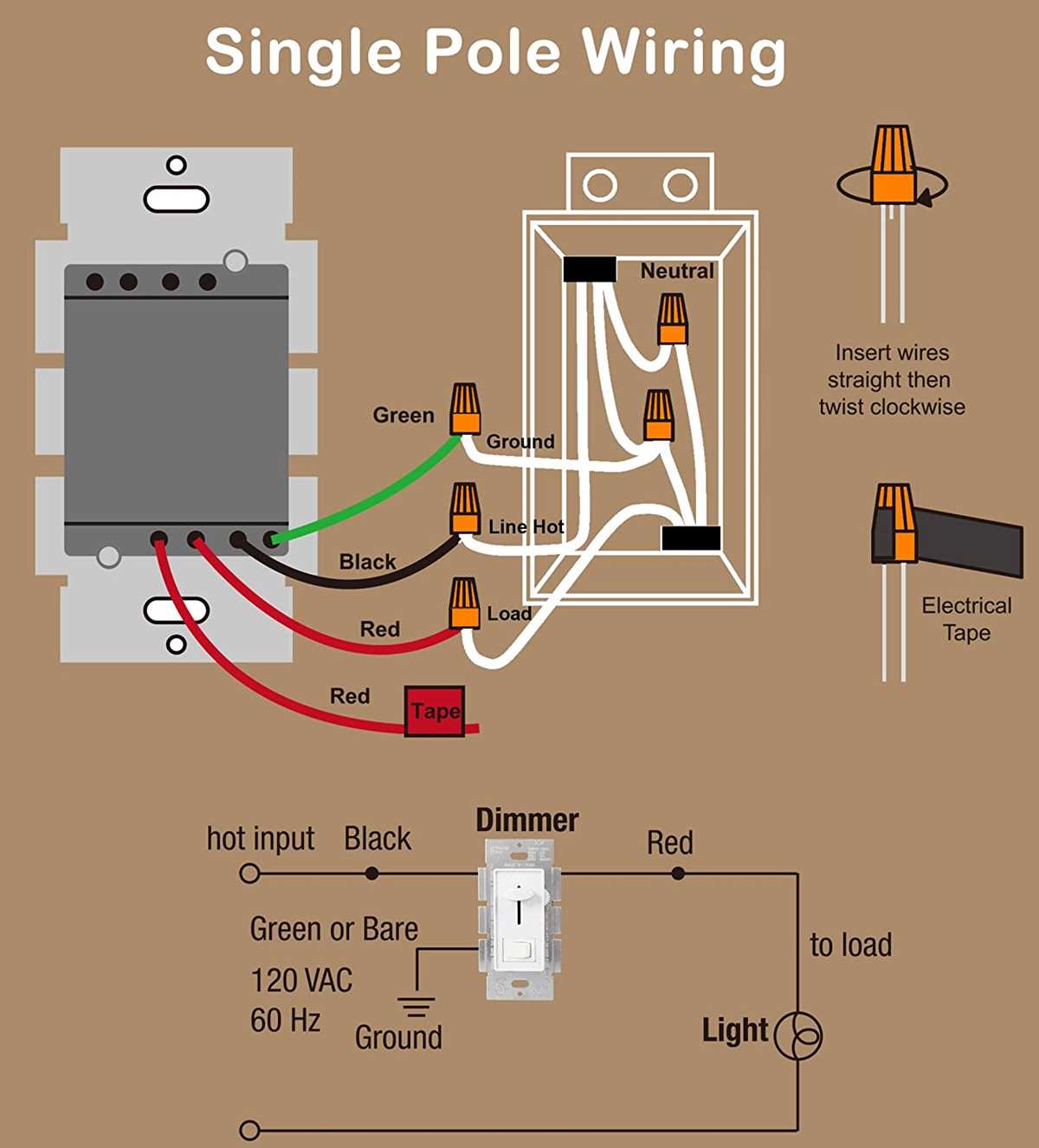

Step 1: Identifying the Correct Wires
First, locate the live wire from the power source and the neutral wire from the fixture. The live wire is usually colored black or red, and the neutral wire is typically white. In a single-pole installation, the live wire connects to the input terminal of the device, while the neutral wire does not connect to the device, instead directly linking to the light fixture.
Step 2: Making the Connections
Strip the insulation off the ends of the wires, ensuring that approximately 1/2 inch of the wire is exposed for secure connection. Attach the live wire to the input terminal and the outgoing wire to the output terminal. If the control device has a ground terminal, connect the ground wire (usually green or bare copper) to it to ensure safety. Secure all wires tightly to their corresponding terminals to avoid loose connections.
Once all connections are made, check for any exposed wire ends or improper contacts before mounting the device. Recheck the alignment of the terminals and ensure there is no short circuit risk. After confirming the wiring is correctly done, the installation process is ready for final testing.
