To successfully replace or install a new sound system in your vehicle, start by identifying the correct connections for power, speakers, and accessories. Ensure the color coding and pin assignments are followed exactly as outlined in the manual, as improper connections can result in malfunction or even damage to the new equipment.

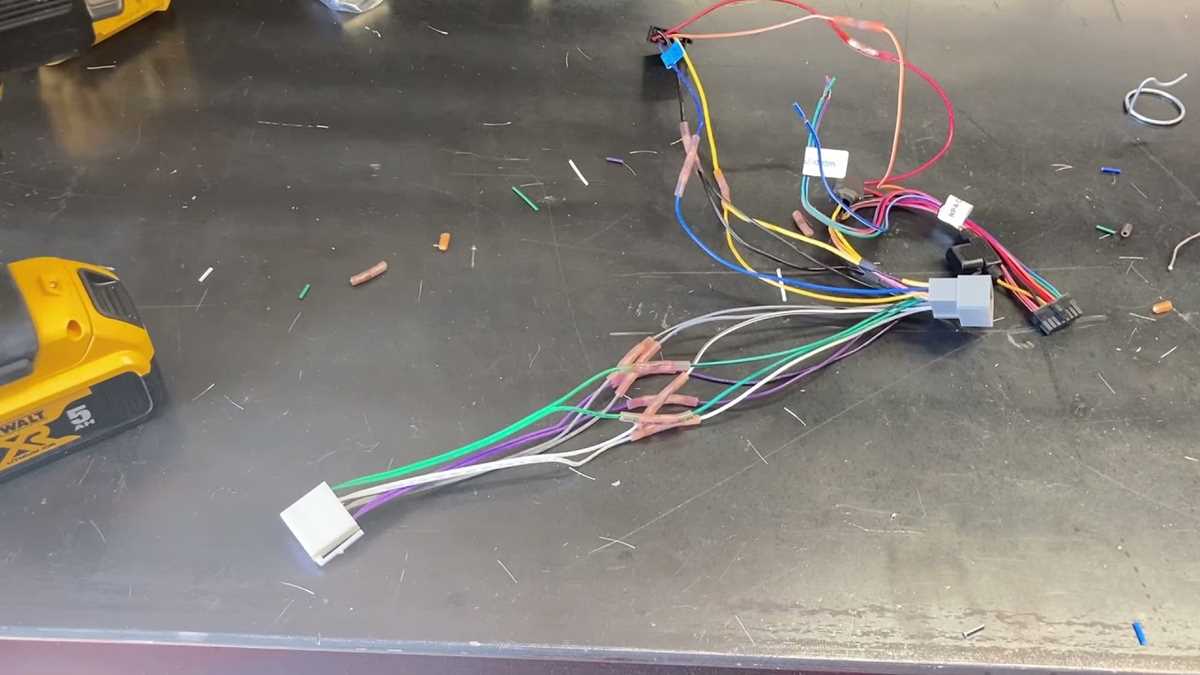

First, ensure that you have the correct adapter or wiring harness if you’re replacing the factory unit. The harness should match the make and model year of your vehicle to ensure compatibility. For instance, there are specific connectors for power, ground, and antenna connections that must align with the corresponding terminals on the new unit.
Next, carefully map out the connections for speaker wires. Each speaker needs a positive and negative connection, which is typically color-coded. Double-check your work by testing the system before finalizing the installation to ensure every component is properly linked and operational.
Lastly, troubleshooting becomes easier if you clearly understand the pin layout of your stereo system. In case of malfunctions or low sound output, retrace each step and confirm that the wiring follows the correct path. Having a solid understanding of each connection point ensures that your system operates at its best and reduces any risk of electrical issues down the road.
2006 Vehicle Stereo Connection Guide for Easy Installation
Start by verifying the compatibility of your new system with the factory setup. Ensure the connection harness matches the vehicle’s make and model, particularly focusing on the power, ground, and accessory connections. This will ensure proper functionality and avoid damage during installation.
Next, identify the speaker wires carefully. Typically, each speaker will have two terminals: positive and negative. These are often color-coded, with common color pairings being white for left positive and grey for right positive. Connect the corresponding speaker to the correct terminal to avoid poor sound quality.
For antenna connections, check the vehicle’s port and match it with the antenna input on the new unit. Sometimes a specific adapter may be needed for seamless connection. Before securing everything in place, confirm the power and signal paths are connected correctly.
Lastly, test the entire system before reassembling the dashboard. Power on the unit and verify that both the sound output and the control features work as expected. Any errors in wiring can be detected early, allowing for a smoother installation process with fewer troubleshooting steps later on.
Understanding the Pinout and Wire Colors for the 2006 Vehicle Stereo
To connect a new unit to the factory harness, first familiarize yourself with the typical wire color codes. For instance, the red wire usually indicates the accessory power, while the yellow one is for constant power. Black is commonly used for ground, ensuring a stable connection to the vehicle’s metal frame.
The speaker wiring is also color-coded. White typically represents the left front positive connection, with its corresponding negative counterpart in white with a black stripe. Similarly, grey is for the right front, and green for the left rear, with color variations depending on the specific speaker configuration.
Be sure to double-check the pinout on the connector before installation. It’s crucial to match the color of each wire correctly to avoid incorrect connections, which could result in malfunction or even damage to the new unit. Use the provided vehicle manuals or online resources to confirm pinout configurations specific to the model.
