To correctly implement a 0-10V control system, it’s crucial to ensure the proper connections between components. Start by identifying the voltage range and determining how to link your controller with the driver and the load. The system’s simplicity lies in its two-wire setup: one for control and one for common ground. It is important to maintain proper polarity and ensure that the control voltage is compatible with the device you’re using.
Next, always check the manufacturer’s specifications for each device in the setup, as there can be variations in voltage tolerance and connection patterns. If your control device doesn’t match the required voltage, consider adding a voltage regulator. Ensure that your cabling is properly insulated and rated for the system’s voltage to avoid short circuits or potential damage to the components.
When you begin the physical connection, start with the power supply first. This ensures safety before connecting the control wires. If you are working with LED fixtures or other sensitive components, use a current-limiting power supply to protect the system from surges. Also, remember to check the system for any grounding issues that might interfere with its functionality.

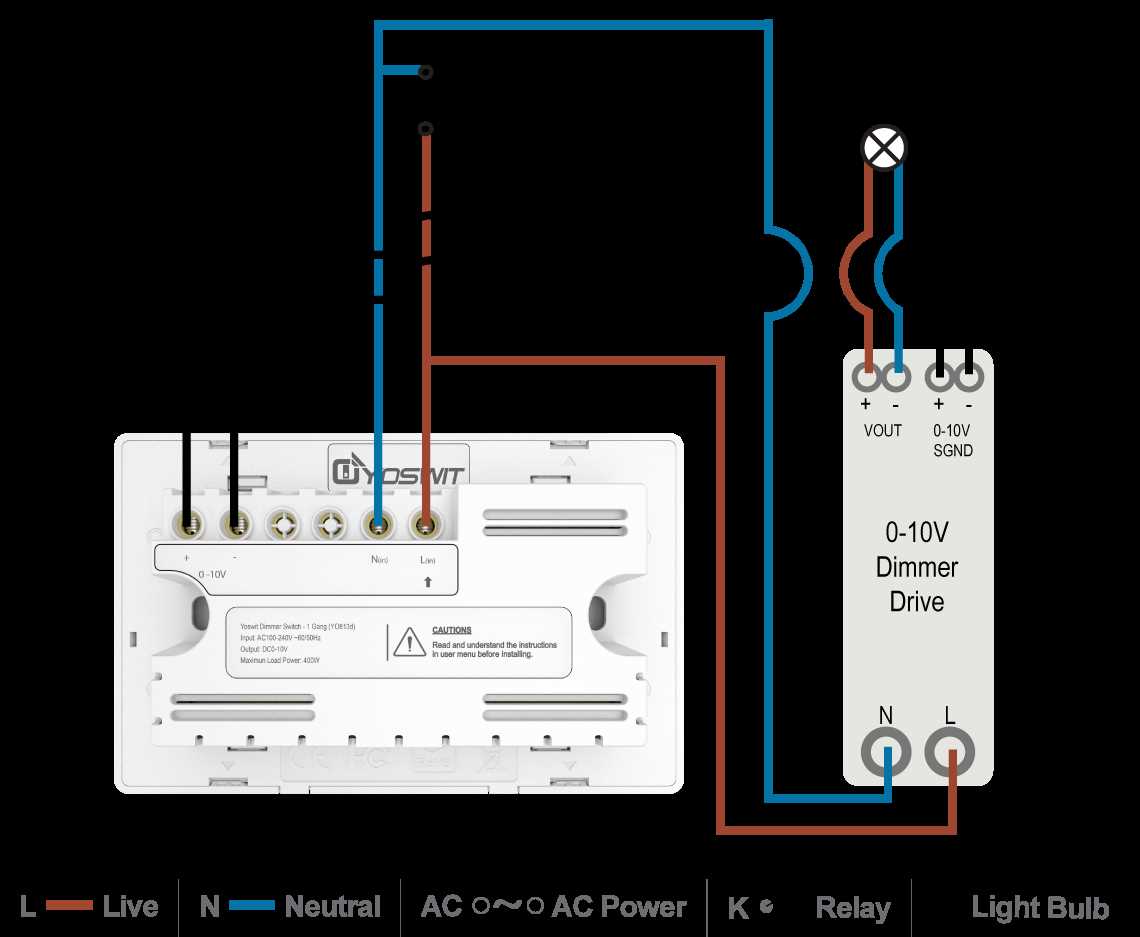

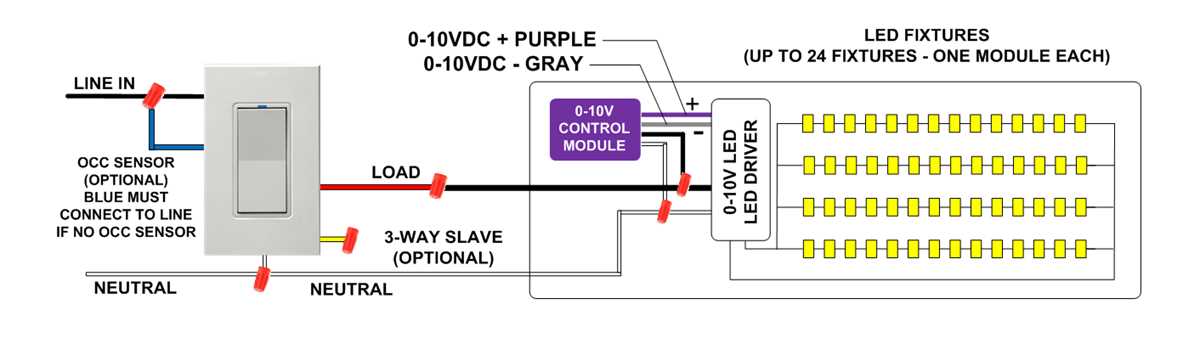

0 10V Dimming Wiring Guide
Start by ensuring your power supply matches the voltage requirements of your control system. Typically, the power supply should provide a stable DC voltage, such as 24V or 48V, depending on the specific setup. Always check the manufacturer’s specifications for both the controller and load to ensure compatibility. The positive wire from the controller will connect to the control input of the driver, while the negative side will connect to the common ground.
Next, connect the control wire from the dimmer to the device that regulates the light intensity. Use a two-wire configuration, one for the signal and one for ground. Ensure that the ground connection is firmly established and that both signal and ground wires are properly insulated. If working with LED systems, avoid using excessive voltage that could cause overheating or malfunctioning of the components.
For systems requiring multiple control devices, you can connect multiple dimmers in series. However, it is important to ensure the wiring is routed correctly, with each dimmer positioned in a way that maintains the signal integrity. In a series configuration, be cautious about any voltage drops, which may affect the overall performance. Use wire gauges appropriate for the current being drawn, and check for any signs of wear or damage in the cables.
Testing is a crucial step before fully powering the system. After making the connections, test each component by gradually increasing or decreasing the voltage to ensure the system responds smoothly. If there is any flickering or instability, check the connections and verify the voltage settings. Proper testing ensures that everything works as expected and prevents potential system failures.
Finally, ensure the safety of your setup by using fuses or circuit breakers to protect against surges or overloads. Always follow the safety guidelines outlined by the manufacturer for installation and handling. By adhering to these practices, you will have a robust and reliable dimming system that functions optimally over time.
Understanding the Basics of 0 10V Dimming System
The core principle of the system is simple: it allows for continuous adjustment of light output from the connected fixtures. A low voltage signal, usually ranging from 0 to 10 volts, is sent from a controller to the light driver. This voltage level directly controls the intensity of the light, offering smooth transitions between dim and bright settings.
In this setup, the controller acts as the central unit that sends the varying voltage signal. The driver or ballast receives this signal and adjusts the brightness of the connected load accordingly. Typically, the voltage range is interpreted as 0V representing the minimum light level, while 10V corresponds to the maximum brightness.
There are two primary types of controllers used in such systems: manual dimmers and automated controllers. Manual dimmers provide a simple rotary or slider control, allowing the user to set the desired light level. Automated controllers, on the other hand, can be integrated into building management systems and adjust light intensity based on time of day, occupancy, or natural light levels.
Most systems support bidirectional communication, where the controller sends the signal, and the driver can send feedback on the current state of the light. This feedback mechanism ensures that the system maintains the desired lighting conditions, improving overall performance and energy efficiency.
For optimal performance, it’s critical to ensure that the components are compatible. Not all drivers are designed to interpret 0-10V control signals, so it’s important to verify that both the controller and driver support this type of system. Mismatched components could lead to unreliable performance or malfunction.
Finally, wiring the system requires precise attention to detail. The control wires must be carefully routed to prevent interference, and the power and control lines should be properly insulated. Proper grounding and following manufacturer instructions will ensure safe and stable operation of the entire setup.
